Rear Door: Adjustment

HINT:

Before adjusting the door positions of vehicles equipped with side airbags and curtain shield airbags, be sure to disconnect the battery. After adjustment, inspect the SRS warning light, the side airbag system, and the curtain shield airbag system for normal operation. Then initialize both airbag systems.
Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.
Centering bolts are used to mount the door hinge to the vehicle body and door. The door cannot be adjusted with the centering bolts install on it. Substitute the centering bolts with standard bolts (with washers) when making adjustments.
A bolt without a torque specification is shown in the standard bolt chart (See SPECIFIED TORQUE FOR STANDARD BOLTS ).

Fig 1: Identifying Centering Bolt And Standard Bolt

DISCONNECT NEGATIVE BATTERY TERMINAL
CAUTION: Wait for 90 seconds after disconnecting the terminal to prevent airbag deployment (See PRECAUTION ).
ADJUST REAR DOOR
1. Loosen the hinge bolts on the vehicle body and adjust the door position.
  SST 09812-00010
2. Tighten the hinge bolts on the vehicle body after the adjustment.
  Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)
3. Loosen the hinge bolts on the door and adjust the door position.
4. Tighten the hinge bolts on the door after the adjustment.
  Torque: 26 N*m (265 kgf*cm, 19 ft.*lbf)

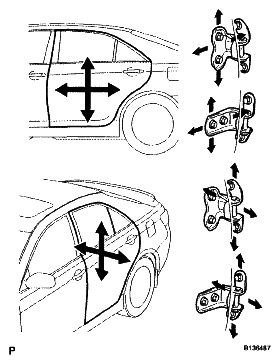

  Fig 2: Adjusting Rear Door Hinge Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Adjust the striker position by slightly loosening the striker mounting screws with a "TORX" socket wrench (T40) and hitting the striker with a plastic hammer.

  Fig 3: Adjusting Striker Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Using a "TORX" socket wrench (T40), tighten the striker mounting screws after the adjustment.
  Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)
CONNECT NEGATIVE BATTERY TERMINAL
INSPECT SRS WARNING LIGHT
(See DIAGNOSIS SYSTEM )
