Luggage Door Hinge Torsion Bar: Removal

REMOVE LUGGAGE COMPARTMENT FLOOR MAT
REMOVE SPARE WHEEL COVER CLAMP
REMOVE SPARE WHEEL COVER ASSEMBLY
REMOVE LUGGAGE COMPARTMENT SIDE TRAY ASSEMBLY
1. Remove the bolt.
2. Disengage the clip and remove the luggage compartment side tray assembly.

  Fig 1: Identifying Luggage Compartment Side Tray Assembly Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK
1. Remove the 2 screws and the 2 No. 1 luggage compartment trim hooks.

  Fig 2: Identifying No. 1 Luggage Compartment Trim Hooks Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR FLOOR FINISH PLATE
1. Disengage the 7 clips and remove the rear floor finish plate.

  Fig 3: Identifying Rear Floor Finish Plate Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER LH
1. Remove the 2 clips and the luggage compartment inner trim cover LH.

  Fig 4: Identifying Luggage Compartment Inner Trim Cover LH Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER RH
1. Remove the 2 clips and the luggage compartment inner trim cover RH.

  Fig 5: Identifying Luggage Compartment Inner Trim Cover Clips RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LUGGAGE DOOR HINGE TORSION BAR RH
1. Disconnect the luggage door hinge torsion bar RH from the luggage compartment door torsion bar support as shown in the illustration.

  Fig 6: Locating Luggage Door Hinge Torsion Bar RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

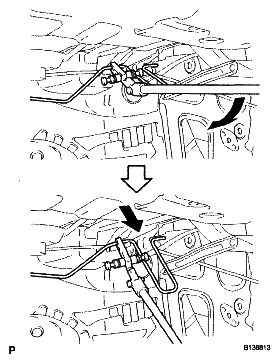

2. Using SST, disconnect the luggage door hinge torsion bar RH from the luggage door hinge and the right side of the vehicle body as shown in the illustration.
  SST 09804-24010

  Fig 7: Locating Luggage Door Hinge Torsion Bar RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the luggage door hinge torsion bar RH from the left side of the vehicle body as shown in the illustration.

  Fig 8: Locating Luggage Door Hinge Torsion Bar RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LUGGAGE DOOR HINGE TORSION BAR LH
1. Disconnect the luggage door hinge torsion bar LH from the luggage compartment door torsion bar support as shown in the illustration.

  Fig 9: Locating Luggage Door Hinge Torsion Bar LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

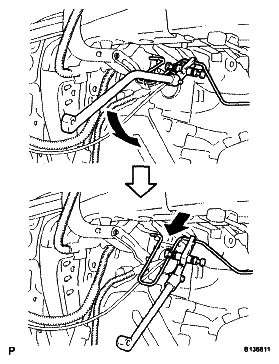

2. Using SST, disconnect the luggage door hinge torsion bar LH from the luggage door hinge and the left side of the vehicle body as shown in the illustration.
  SST 09804-24010

  Fig 10: Locating Luggage Door Hinge Torsion Bar LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the luggage door hinge torsion bar LH from the right side of the vehicle body as shown in the illustration.

  Fig 11: Locating Luggage Door Hinge Torsion Bar LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LUGGAGE COMPARTMENT DOOR TORSION BAR SUPPORT
1. Remove the luggage compartment door torsion bar support as shown in the illustration.

  Fig 12: Locating Luggage Compartment Door Torsion Bar Support
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
