Luggage Door Hinge Torsion Bar: Components

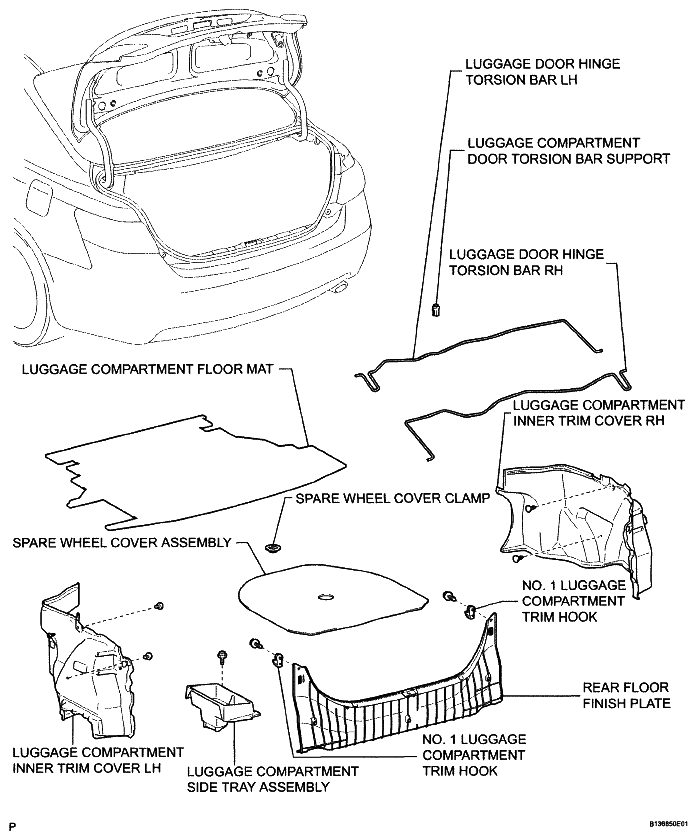

Fig 1: Identifying Luggage Door Hinge Torsion Bar Components

G04981831

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
