On-Vehicle Inspection

INSPECT LUGGAGE COMPARTMENT DOOR PANEL SUB-ASSEMBLY

Check that the clearance measurements of areas A through F are within each standard range.

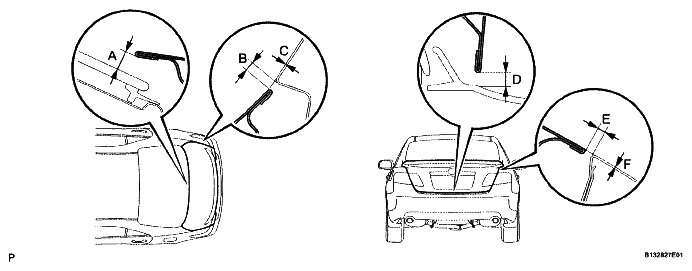

Fig 1: Identifying Clearance Measurements Areas A Through F
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard clearance

LUGGAGE COMPARTMENT DOOR PANEL SUB-ASSEMBLY

Area	Measurement	Area	Measurement
A	7.6 mm (0.299 in.)	D	3.8 to 7.8 mm (0.146 to 0.307 In.)
B	2.0 to 5.0 mm (0.079 to 0.197 in.)	E	2.0 to 5.0 mm (0.079 to 0.197 In.)
C	-1.5 to 1.5 mm (-0.059 to 0.059 In.)	F	-1.5 to 1.5 mm (-0.059 to 0.059 In.)
