Luggage Compartment Door: Components

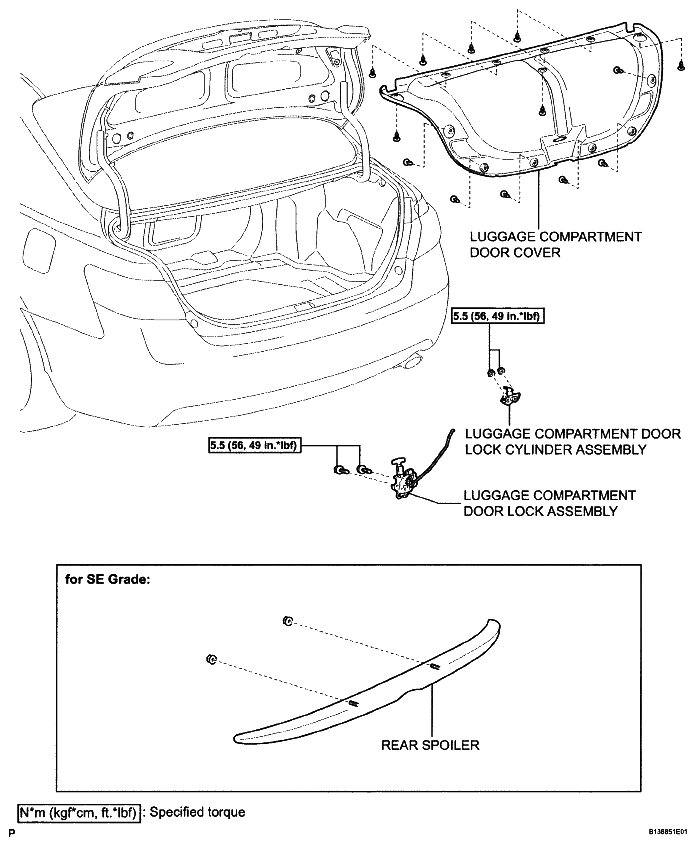

Fig 1: Luggage Compartment Door Replacement Components With Torque Specifications (1 Of 2)
G04981816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

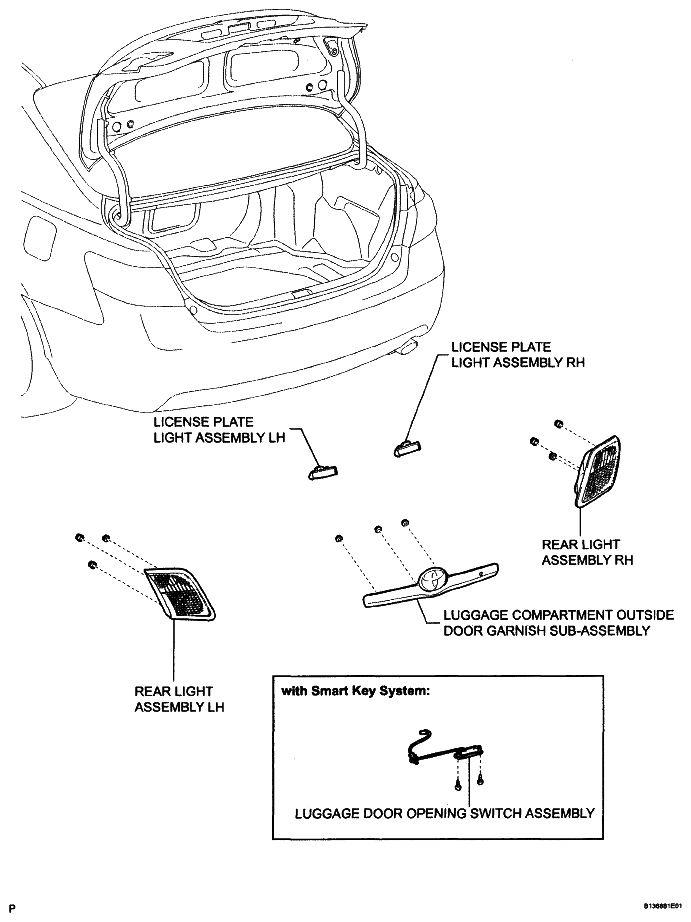

Fig 2: Identifying Luggage Compartment Door Components (2 Of 2)
G04981817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
