Hood Lock Control Cable Assembly: Removal

  1. REMOVE FRONT WHEEL
  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD
    1. Remove the 3 screws and the front wheel opening extension pad.
      Fig 1: Identifying Front Wheel Opening Extension Pad Screws
      G04981638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE COOL AIR INTAKE DUCT SEAL (for 2GR-FE)  (See REMOVAL )
  4. REMOVE FRONT BUMPER ASSEMBLY (w/o Fog Light)  (See REMOVAL )
  5. REMOVE FRONT BUMPER ASSEMBLY (w/ Fog Light)  (See DISASSEMBLY )
  6. REMOVE FRONT FENDER LINER
    1. Remove the 5 clips and bolt.
    2. Remove the 4 screws, grommet, and the front fender liner.
      Fig 2: Identifying Screws, Grommet, And Front Fender Liner
      G04981639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE HIGH PITCHED HORN ASSEMBLY  (See REMOVAL )
  8. REMOVE HOOD LOCK ASSEMBLY (w/o Engine Hood Courtesy Switch)
    1. Remove the 3 bolts.
      Fig 3: Identifying Hood Lock Assembly Bolts
      G04981640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the hood lock control cable.
      Fig 4: Identifying Hood Lock Control Cable
      G04981641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the hood lock assembly.
  9. REMOVE HOOD LOCK ASSEMBLY (w/ Engine Hood Courtesy Switch)
    1. Disconnect the connector.
    2. Remove the 3 bolts.
      Fig 5: Locating Hood Lock Assembly
      G04981642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the hood lock control cable.
      Fig 6: Identifying Hood Lock Control Cable
      G04981643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the hood lock assembly.
  10. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. Disconnect the hood lock control cable and remove the hood lock control lever.
      Fig 7: Identifying Hood Lock Control Lever
      G04981644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY
    1. Using a screwdriver, disconnect the clamps shown in the illustration.

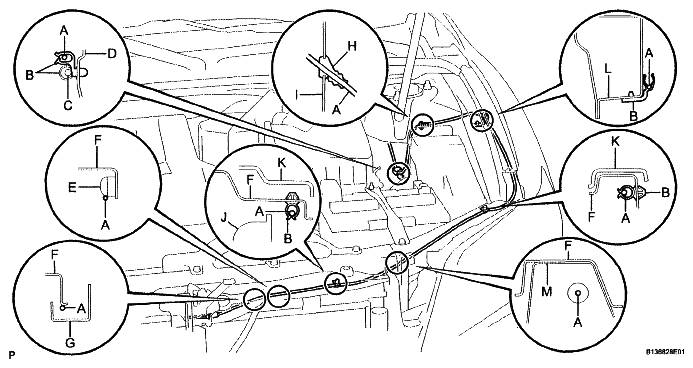

      Fig 8: Identifying Hood Lock Control Cable Assembly
      G04981645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      HOOD LOCK CONTROL CABLE PART DESCRIPTION

      Area Part Name Area Part Name
      A Hood lock control cable H Grommet
      B Clamp I Side member outer
      C Wire harness J Radiator
      D Pillar K Radiator support cover
      E Nut L Front fender apron
      F Radiator support upper M Brace
      G Hood lock protector - -

      HINT:

      Tape the screwdriver tip before use.

    2. Pull the cable from the engine compartment and remove it.
