Hood Lock Control Cable Assembly: Components

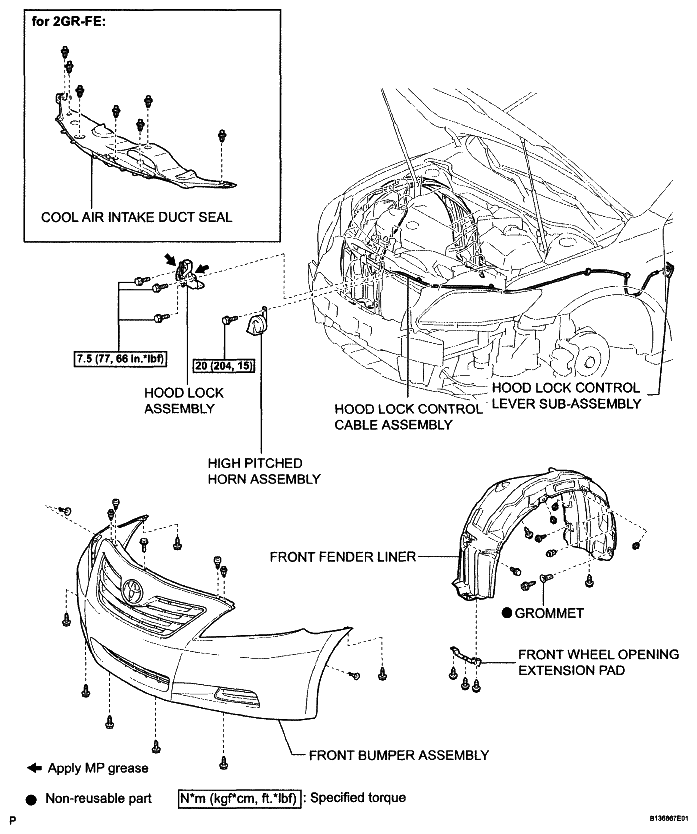

Fig 1: Hood Lock Control Cable Assembly Replacement Components With Torque Specifications
G04981637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
