On-Vehicle Inspection

INSPECT FRONT DOOR PANEL SUB-ASSEMBLY

Check that the clearance measurements of areas A through L are within each standard range.

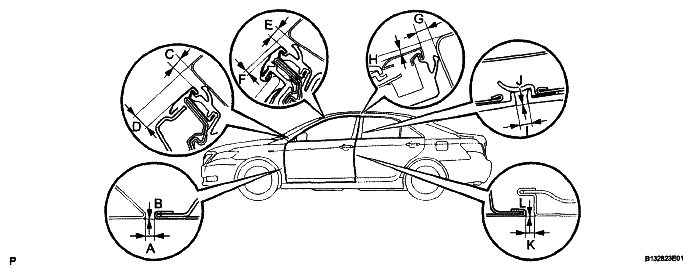

Fig 1: Identifying Clearance Measurements Of Areas A Through L

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard clearance

FRONT DOOR PANEL SUB-ASSEMBLY

Area	Measurement	Area	Measurement
A	2.7 to 5.7 mm (0.106 to 0.224 In.)	G	3.3 to 6.3 mm (0.130 to 0.248 in.)
B	-1.5 to 1.S mm (-0.059 to 0.059 in.)	H	-0.3 to 2.7 mm (-0.012 to 0.106 in.)
C	3.3 to 6.3 mm (0.130 to 0.248 In.)	I	2.3 to 6.3 mm (0.091 to 0.248 In.)
D	6.4 to 9.4 mm (0.252 to 0.370 In.)	J	-2.0 to 2.0 mm (-0.079 to 0.079 in.)
E	3.3 to 6.3 mm (0.130 to 0.248 In.)	K	2.7 to 5.7 mm (0.106 to 0.224 In.)
F	0.9 to 3.9 mm (0.035 to 0.154 In.)	L	-1.5 to 1.5 mm (-0.059 to 0.059 In.)
