Front Door: Components

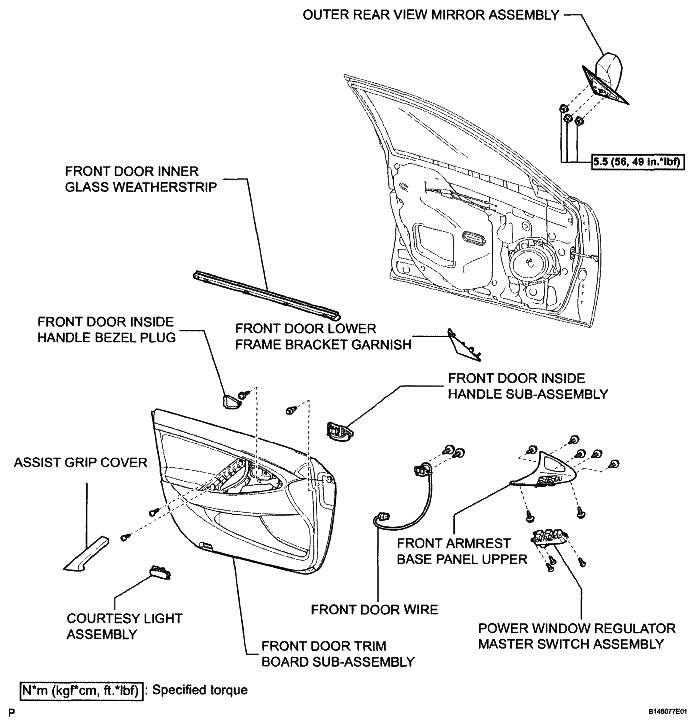

Fig 1: Front Door Replacement Components With Torque Specifications (1 Of 3)
G04981656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

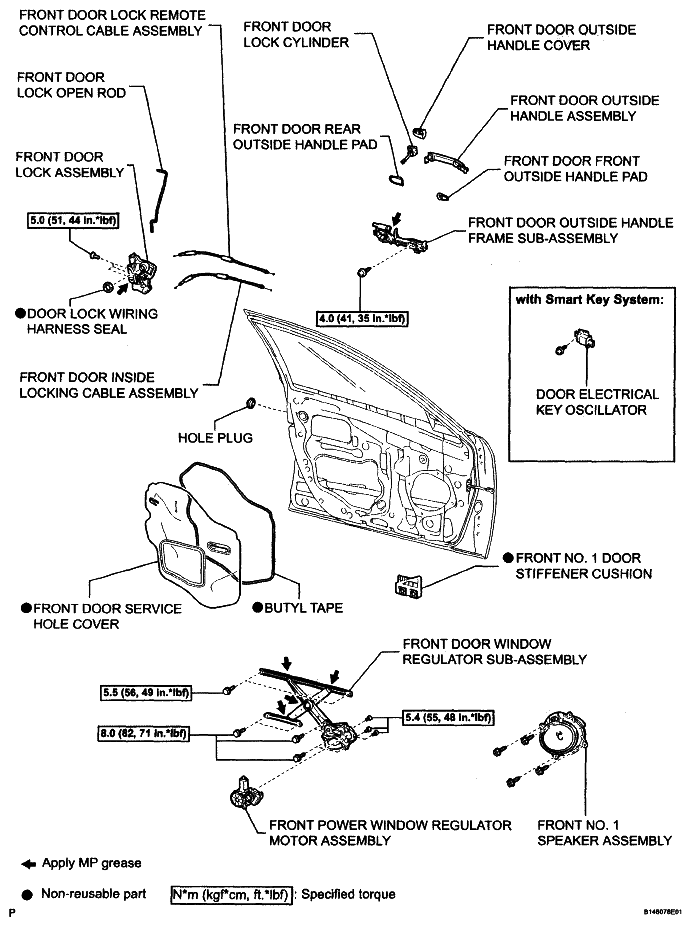

Fig 2: Front Door Replacement Components With Torque Specifications (2 Of 3)
G04981657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

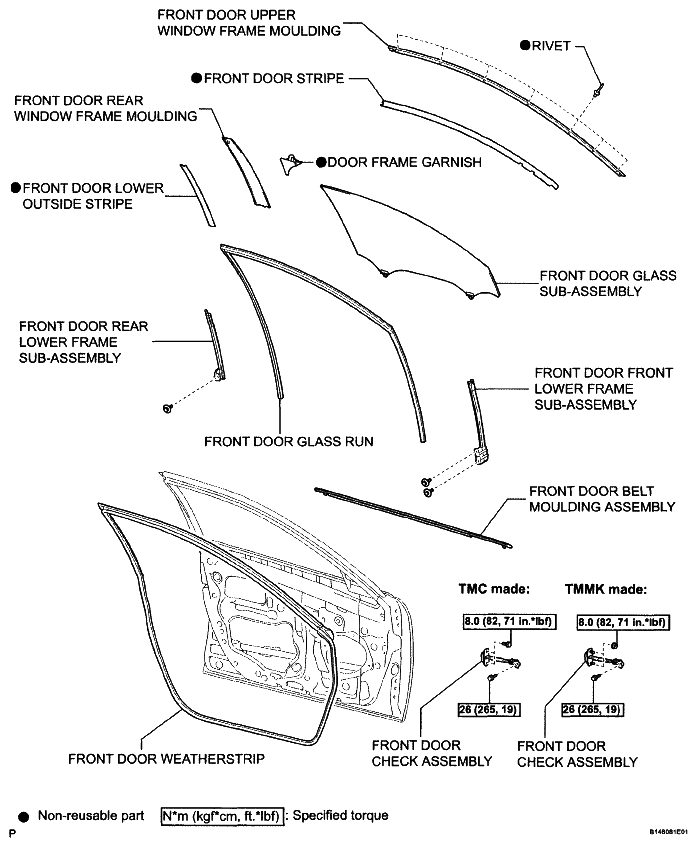

Fig 3: Front Door Replacement Components With Torque Specifications (3 Of 3)
G04981658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
