Steering Pad Switch: Components

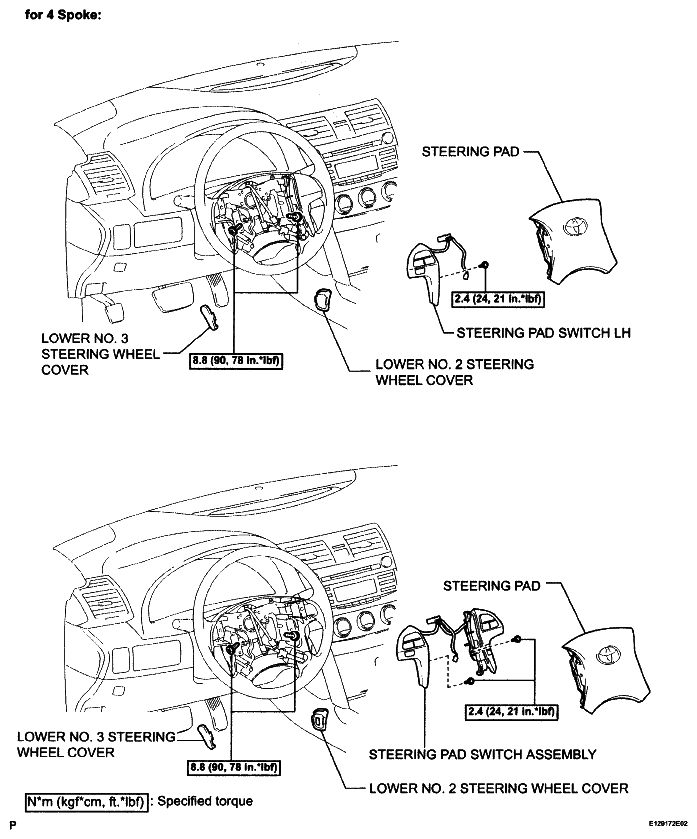

Fig 1: Steering Pad Switch Replacement Components With Torque Specifications - For 4 Spoke
G04980570Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

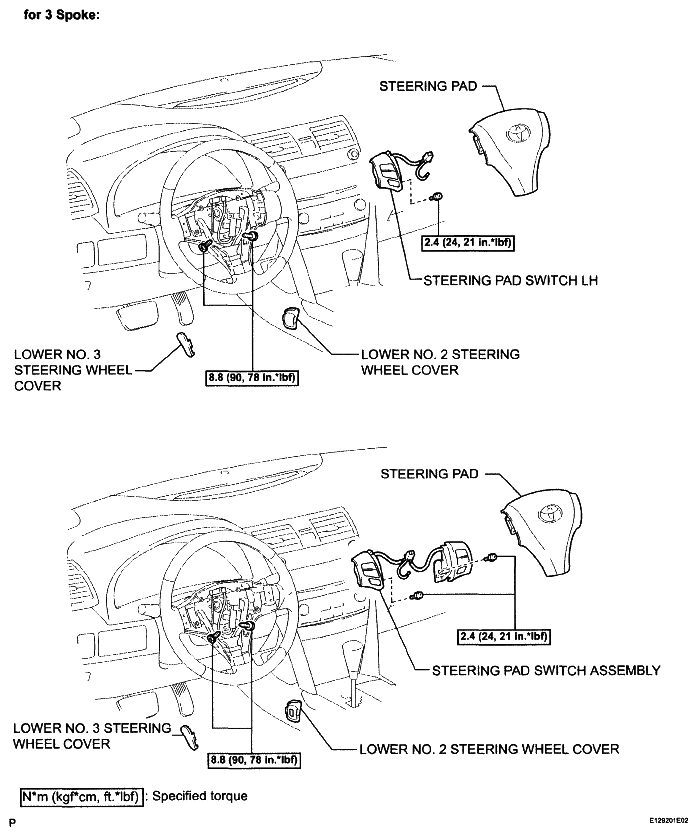

Fig 2: Steering Pad Switch Replacement Components With Torque Specifications - For 3 Spoke
G04980571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
