Speed Signal Circuit: Wiring Diagram

  1. For 2AZ-FE

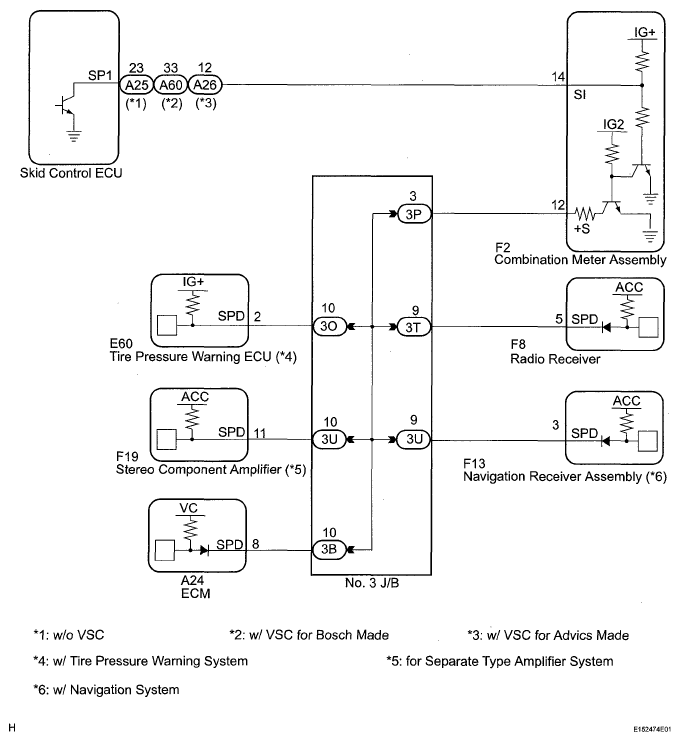

    Fig 1: Speed Signal - Wiring Diagram (For 2AZ-FE)
    G05558371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. For 2GR-FE

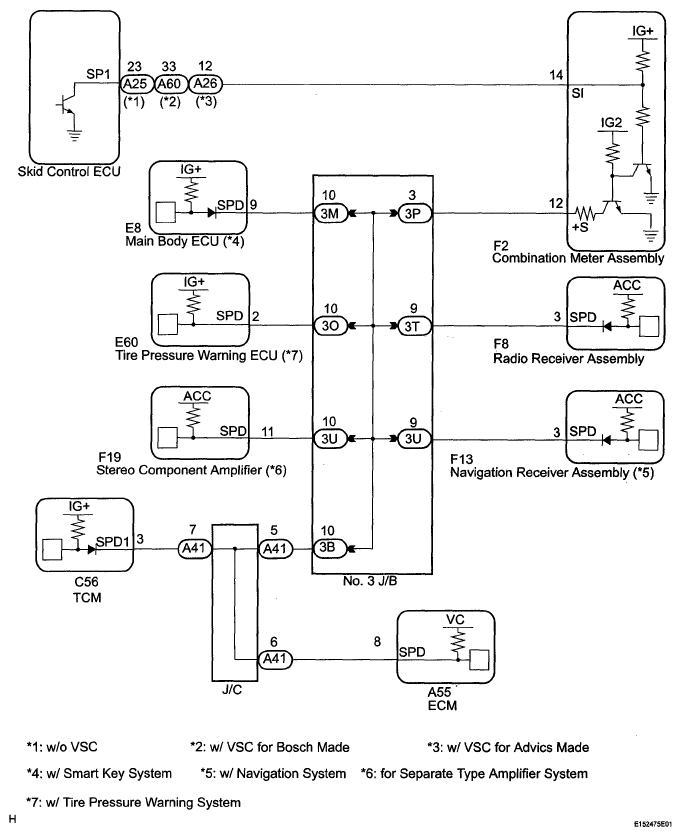

    Fig 2: Speed Signal - Wiring Diagram (For 2GR-FE)
    G05561639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
