Meter Illumination is Always Dark: Wiring Diagram

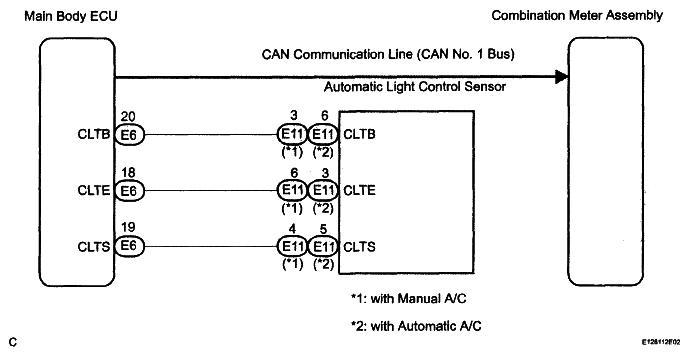

Fig 1: Meter Illumination Always Dark - Wiring Diagram

G04980544

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
