System Diagram

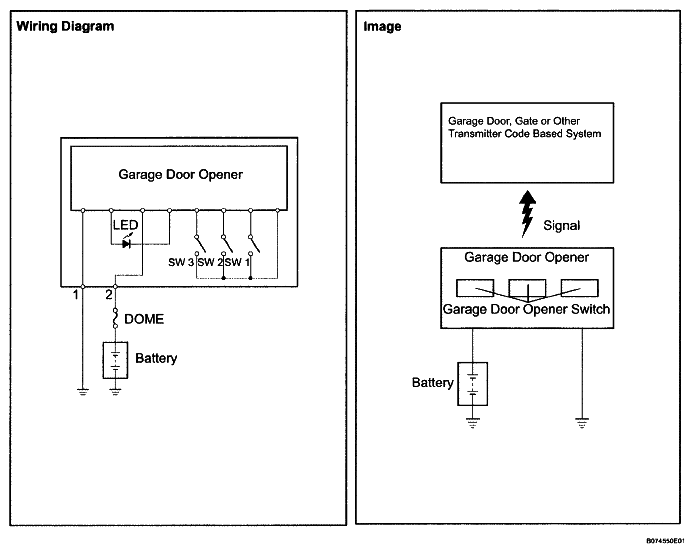

Fig 1: Garage Door Opener System - Wiring Diagram
G04981024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. DESCRIPTION
    1. A maximum of three codes for transmitter code based systems such as garage doors, gates, and entry gates can be registered to the vehicle's garage door opener system. These stored codes can then be used to activate the transmitter controlled systems. It will not be necessary to keep the original handheld transmitters in the vehicle.
