Instrument Panel Safety Pad: Installation

WARNING: This page is about a different car, the 2008 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
1. Engage the 5 claws.
2. Install the 2 bolts < A > and 2 nuts < G >.

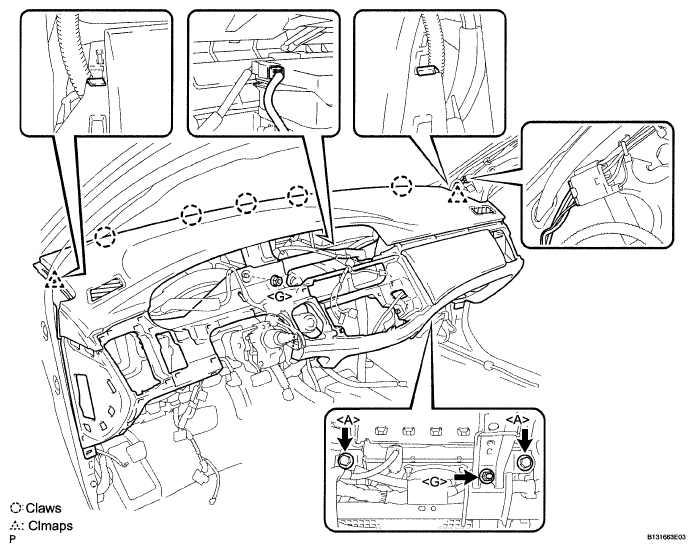

  Fig 1: Identifying Instrument Panel Safety Pad Sub-Assembly With Claw, Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 2 clamps.
  Torque: Bolt < A >

  20 N*m (204 kgf*cm, 15 ft.*lbf)
ADJUST SPIRAL CABLE
INSTALL STEERING WHEEL ASSEMBLY
INSTALL HORN BUTTON ASSEMBLY
CONNECT BATTERY NEGATIVE TERMINAL
PERFORM INITIALIZATION
1. Some systems need initialization when disconnecting the cable from the negative battery terminal (See INITIALIZATION ).
INSPECT STEERING PAD
HINT:

(See ON-VEHICLE INSPECTION ).
INSPECT SRS WARNING LIGHT
HINT:

(See DIAGNOSIS SYSTEM ).
