DTC P0010 Camshaft Position "A" Actuator Circuit (Bank 1); DTC P0020 Camshaft Position "A" Actuator Circuit (Bank 2): Wiring Diagram

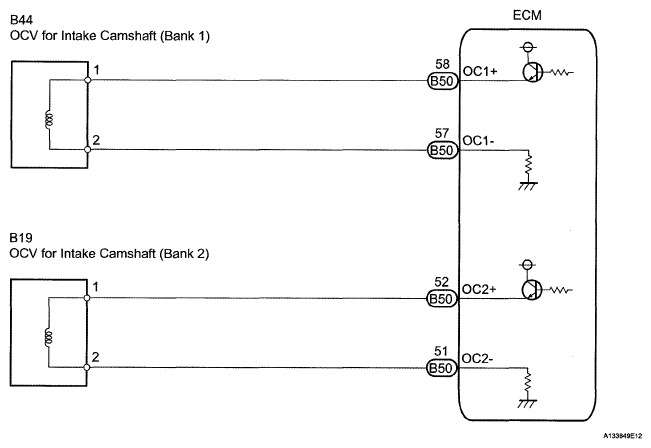

Fig 1: Oil Control Valve (Intake Camshaft) - Wiring Diagram
G05404438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
