Air Fuel Ratio Sensor: Removal

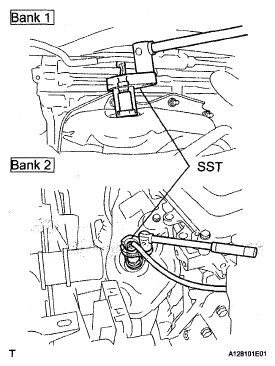

Fig 1: Removing Air Fuel Ratio Sensors
G04997132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. REMOVE AIR FUEL RATIO SENSOR
    1. Disconnect the 2 air fuel ratio sensor connectors.
    2. Remove the 2 air fuel ratio sensors from the front pipe assembly.

      SST 09224-00010
