Shift Lock, Turn Signal and Hazard Warning Light

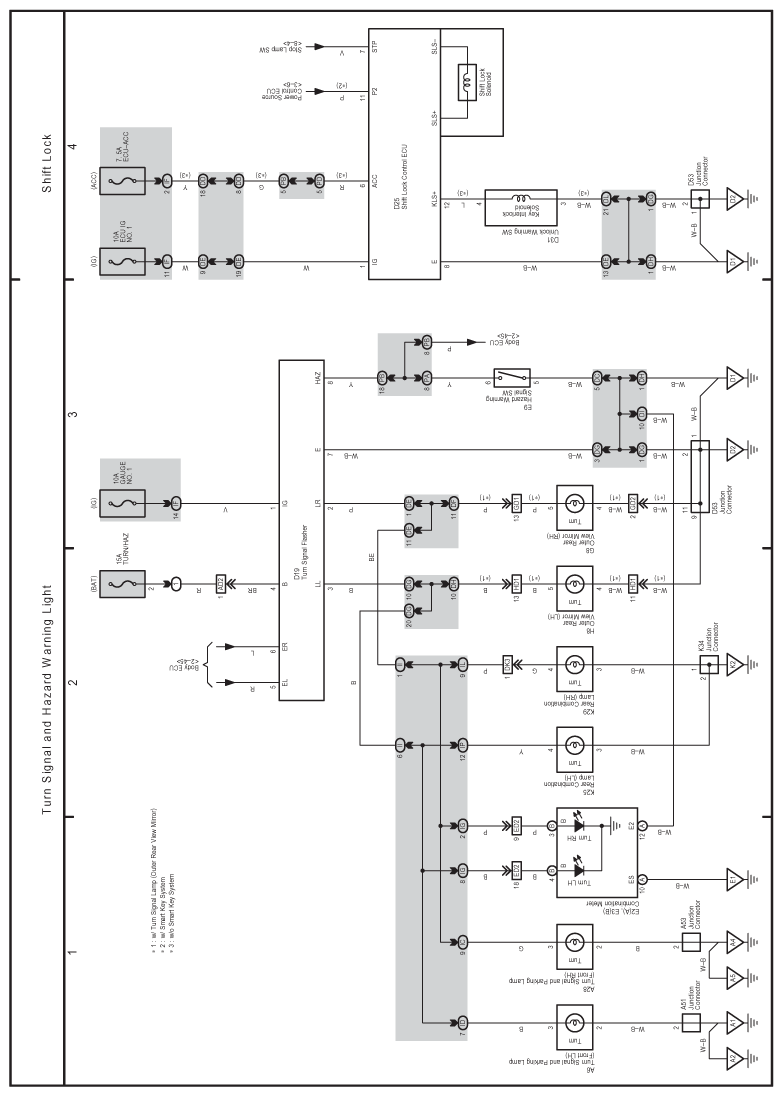

Fig 1: Turn Signal And Hazard Warning Light And Shift Lock Electrical Wiring Diagram
G07615385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
