Avalon XLS
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Remote Control Mirror (w/ Driving Position Memory)
Remote Control Mirror (w/ Driving Position Memory)

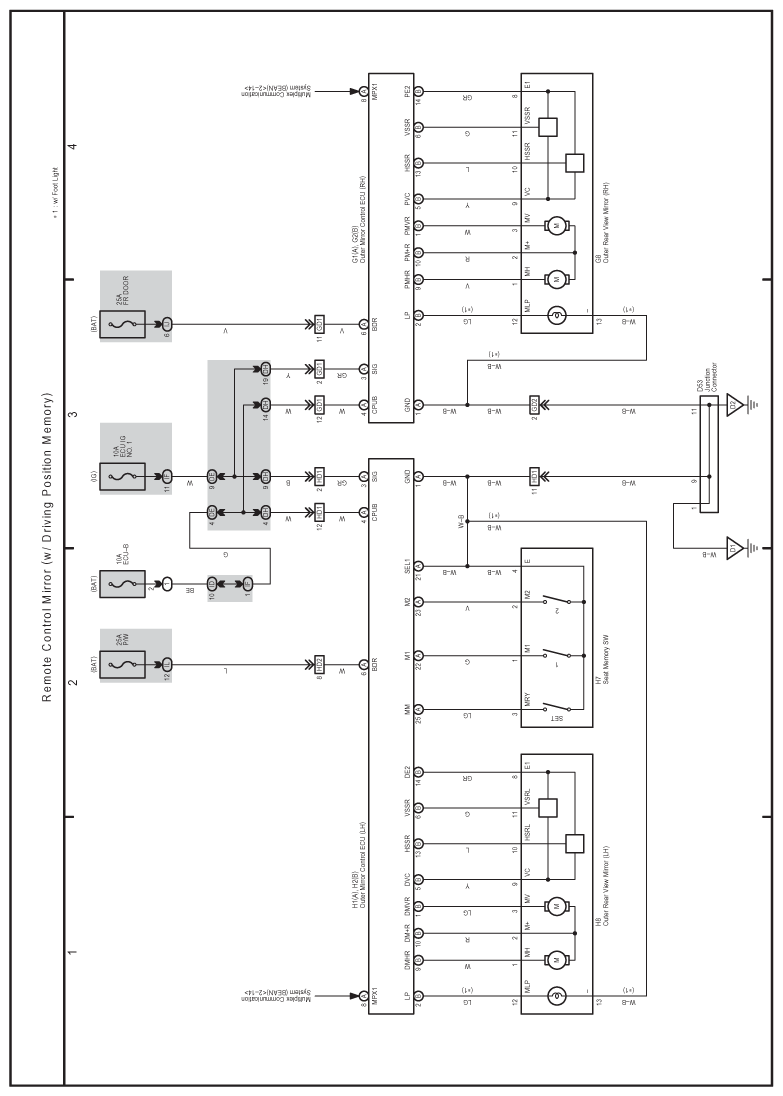

Fig 1: Remote Control Mirror (W/ Driving Position Memory) Electrical Wiring Diagram
