Power Source

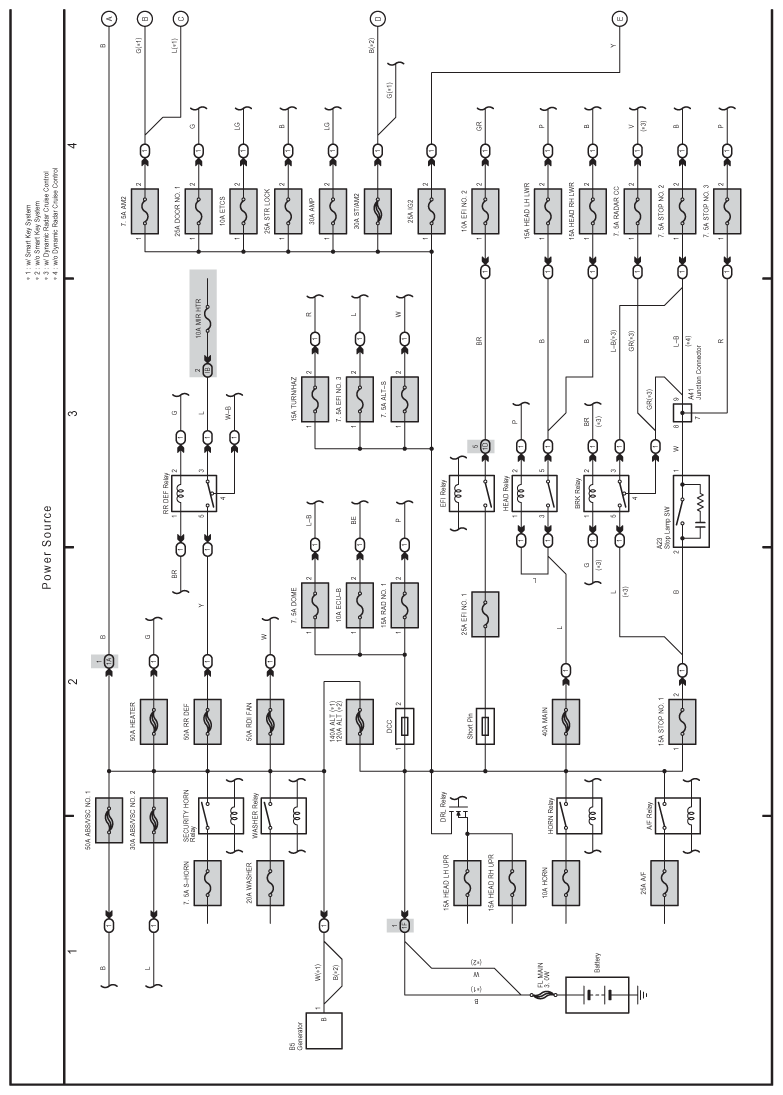

Fig 1: Power Source Electrical Wiring Diagram (1 Of 2)
G07615352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

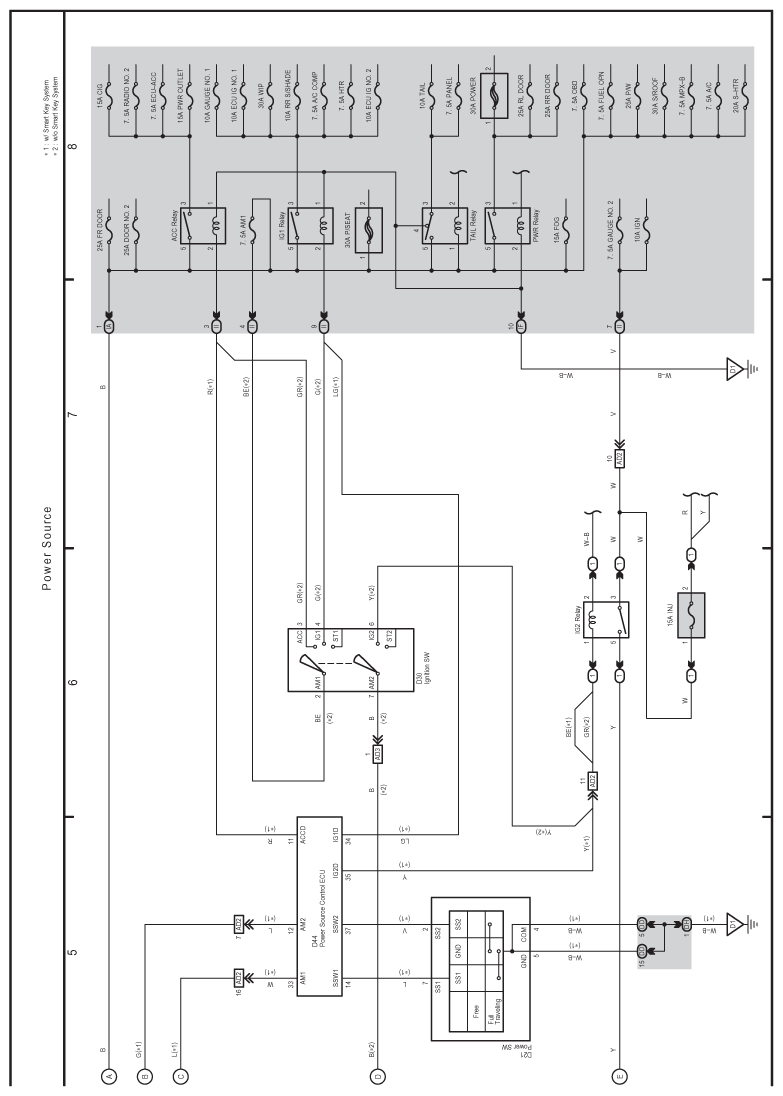

Fig 2: Power Source Electrical Wiring Diagram (2 Of 2)
G07615353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
