Multi Display (w/ Navigation System), Navigation System

Fig 1: Multi-Display (W/ Navigation System) And Navigation System Electrical Wiring Diagram (1 Of 2)
G07615403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

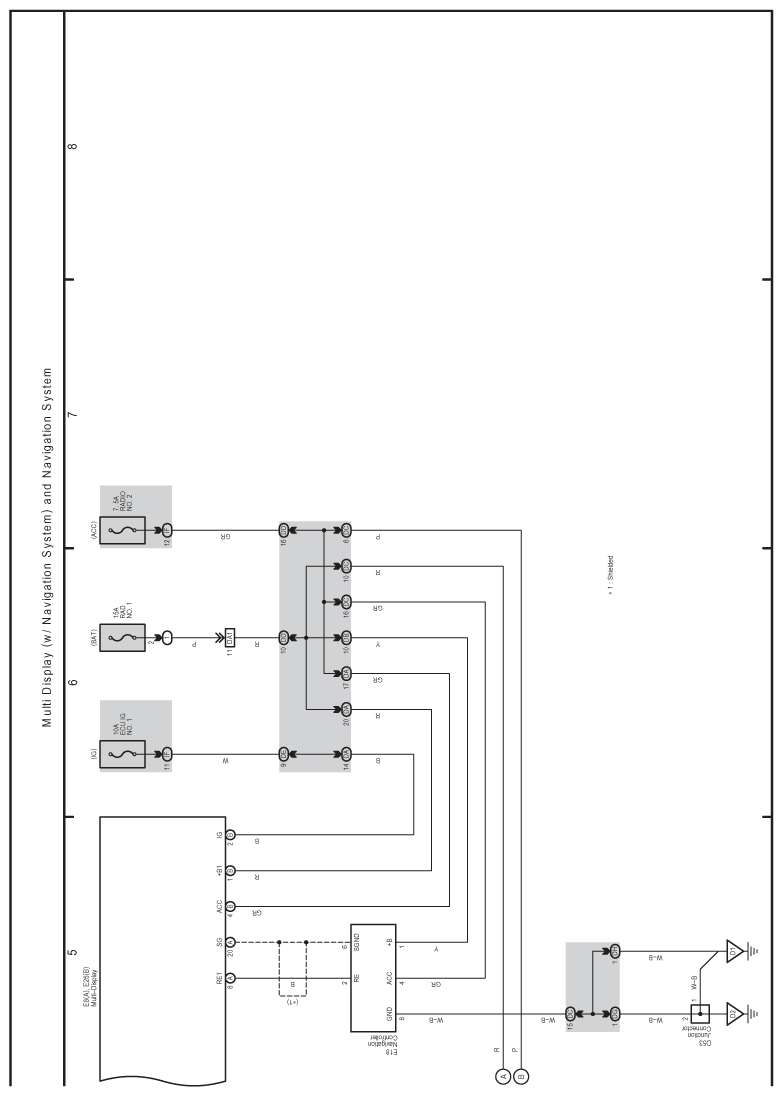

Fig 2: Multi-Display (W/ Navigation System) And Navigation System Electrical Wiring Diagram (2 Of 2)
G07615404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
