How To Read This Section

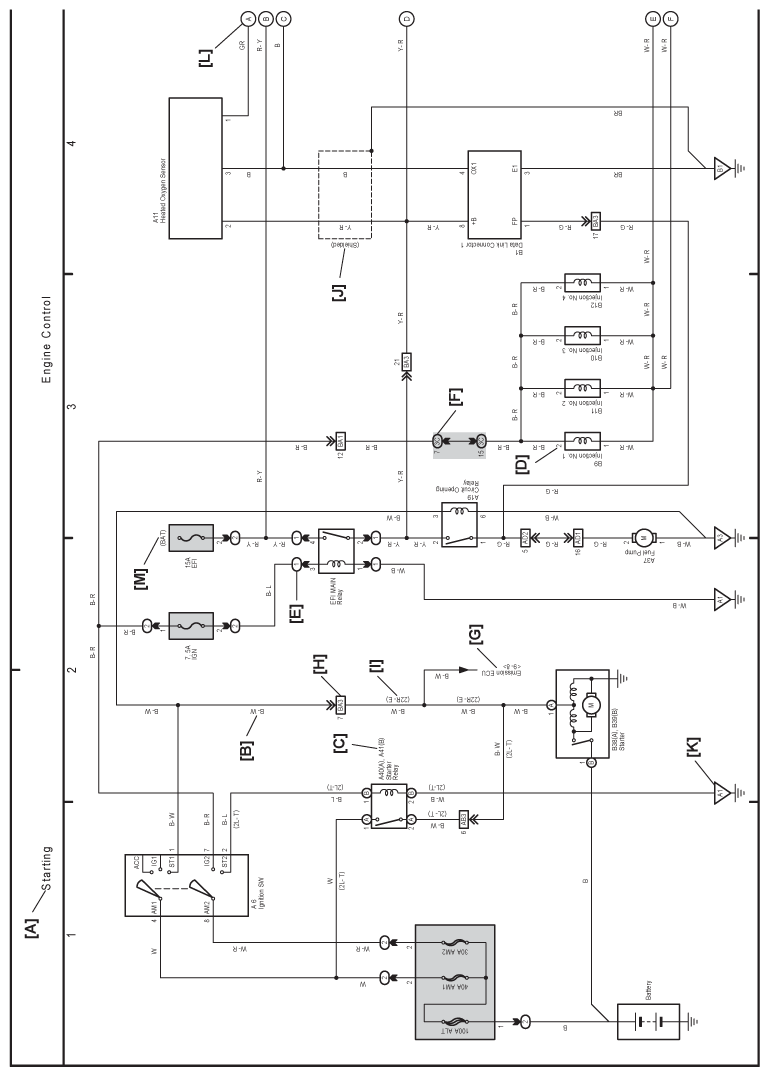

Fig 1: Example Of Electrical Wiring Diagram
G07615350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

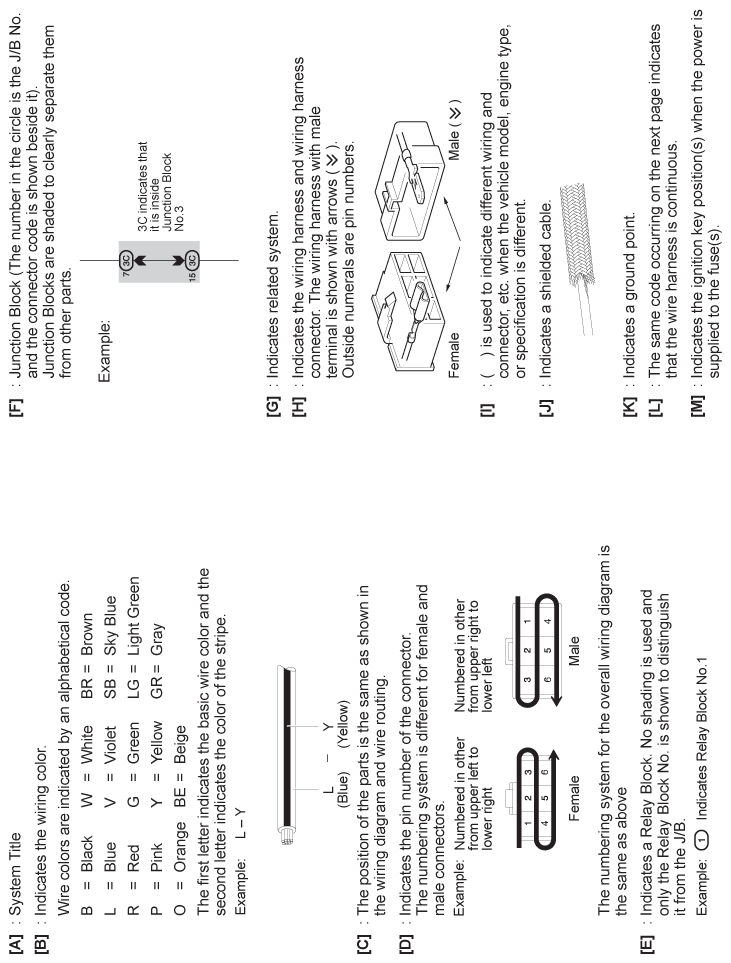

Fig 2: Electrical Wiring Diagram Legends
G07615351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
