Cruise Control, Dynamic Radar Cruise Control, Electronically Controlled Transmission and A/T Indicator, Engine Control

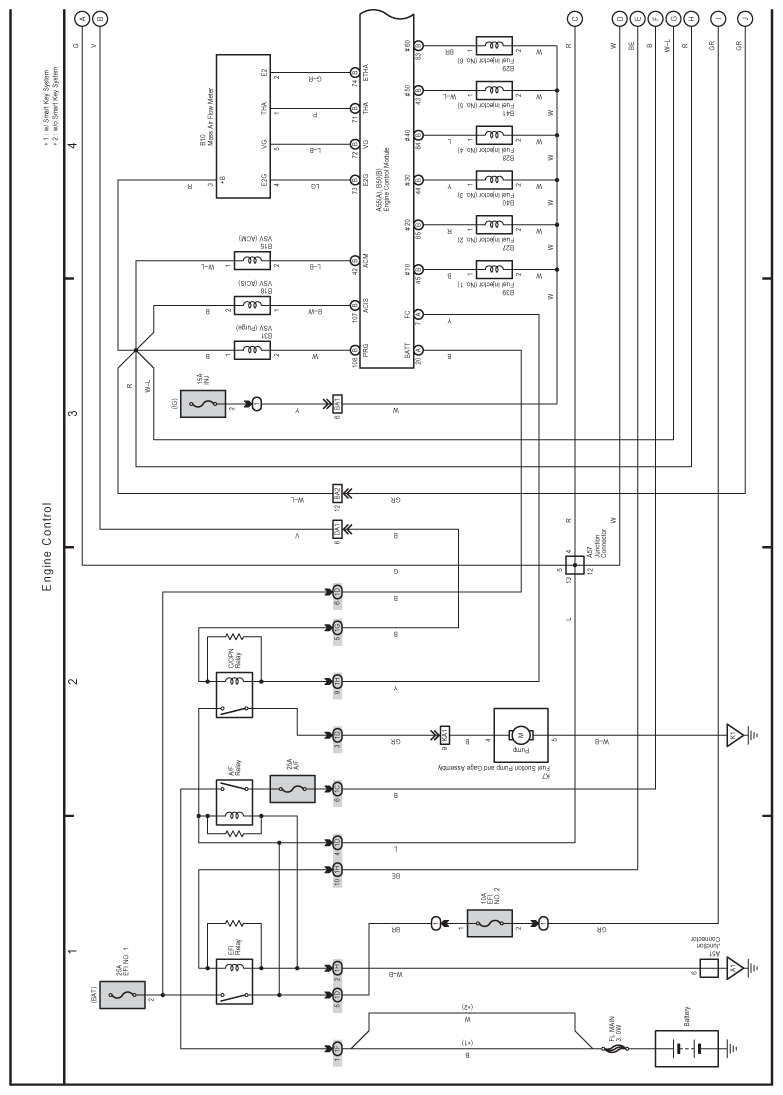

Fig 1: Engine Control Electrical Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

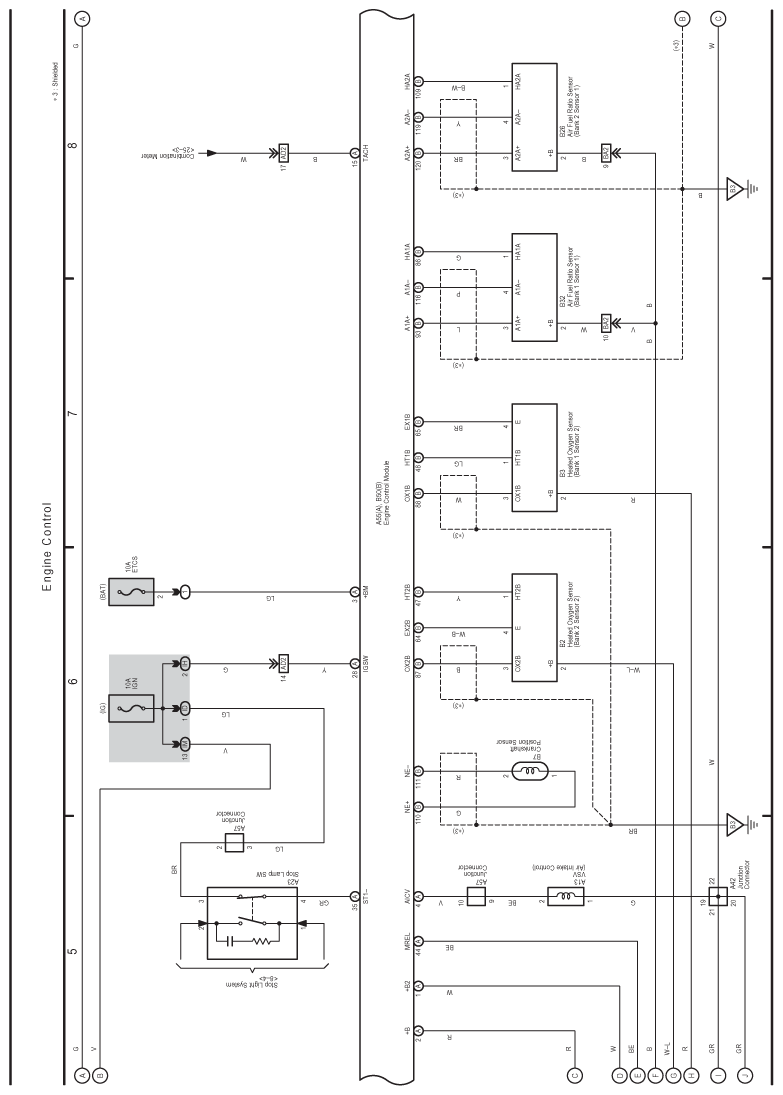

Fig 2: Engine Control Electrical Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

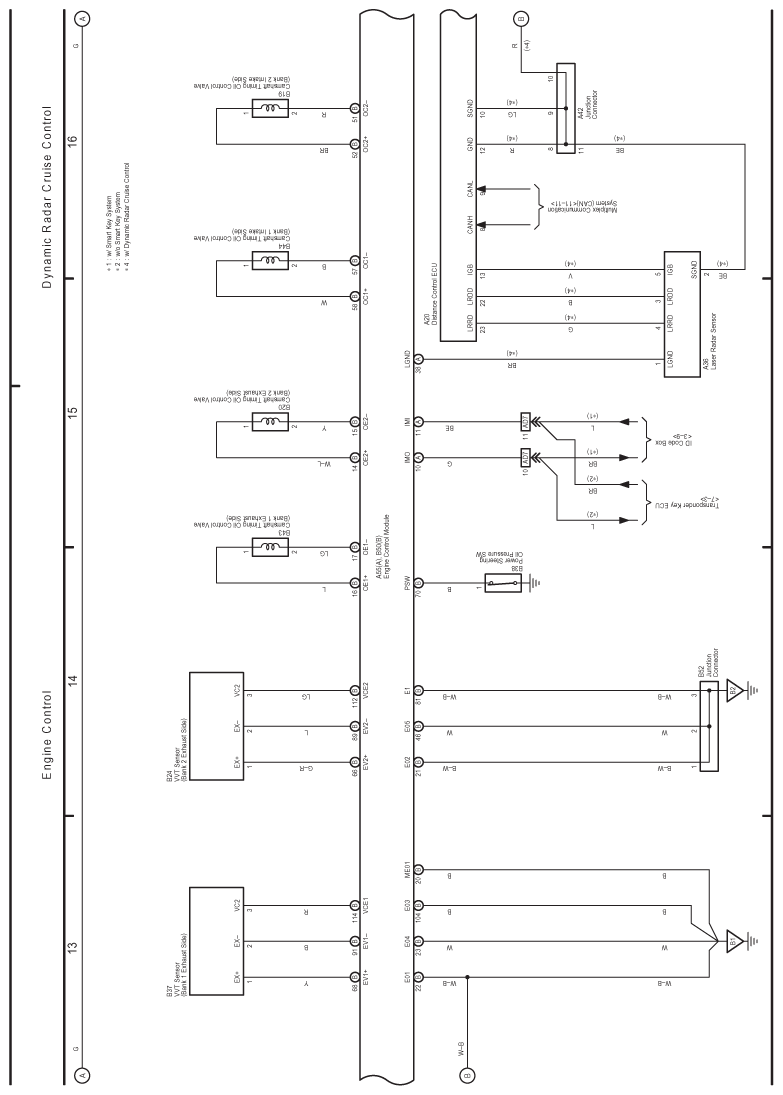

Fig 3: Engine Control Electrical Wiring Diagram (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

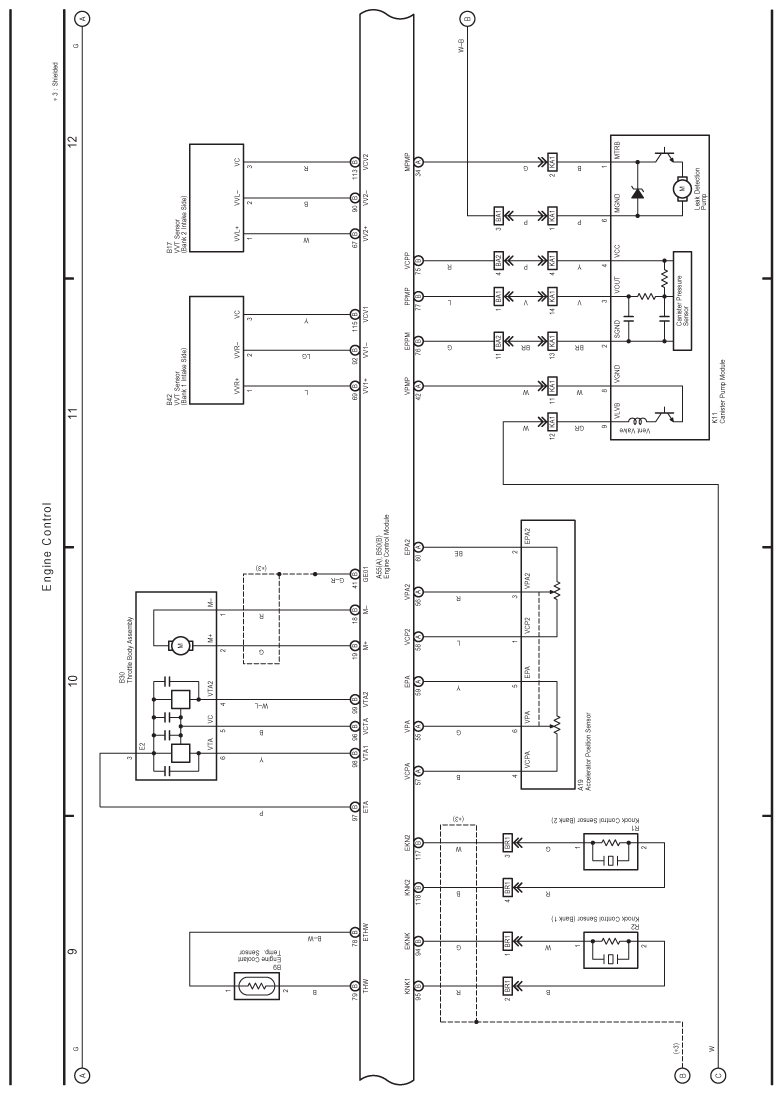

Fig 4: Engine Control Electrical Wiring Diagram (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

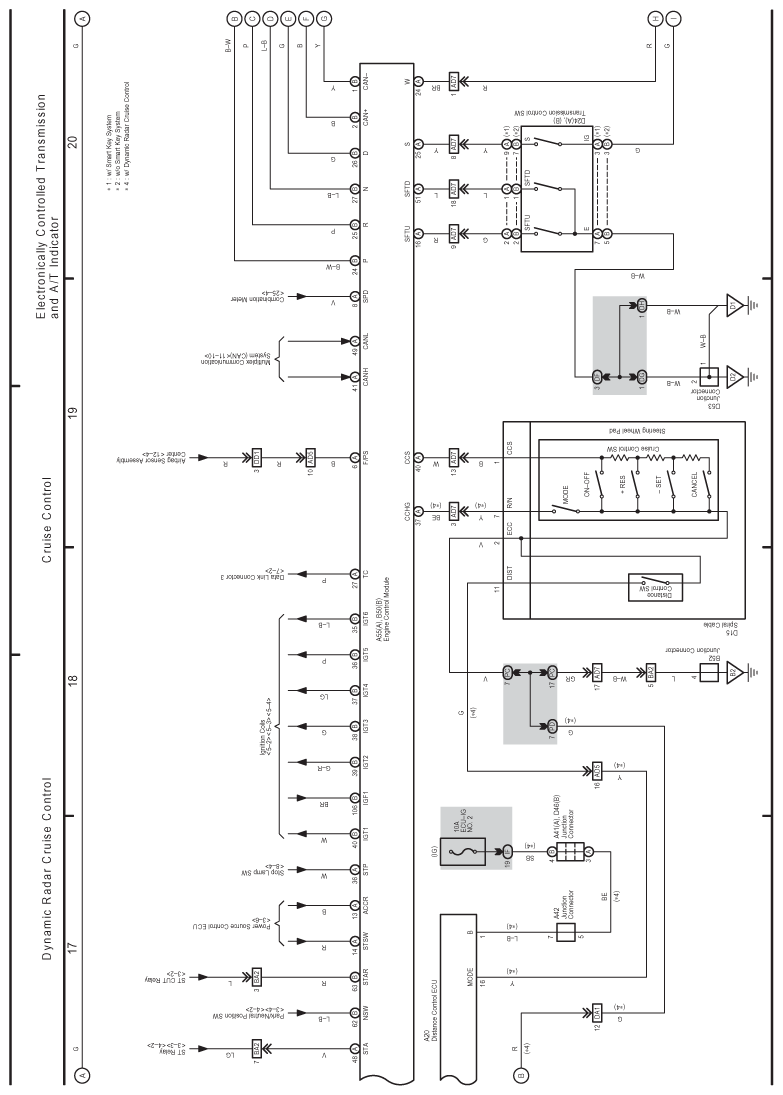

Fig 5: Cruise Control Electrical Wiring Diagram

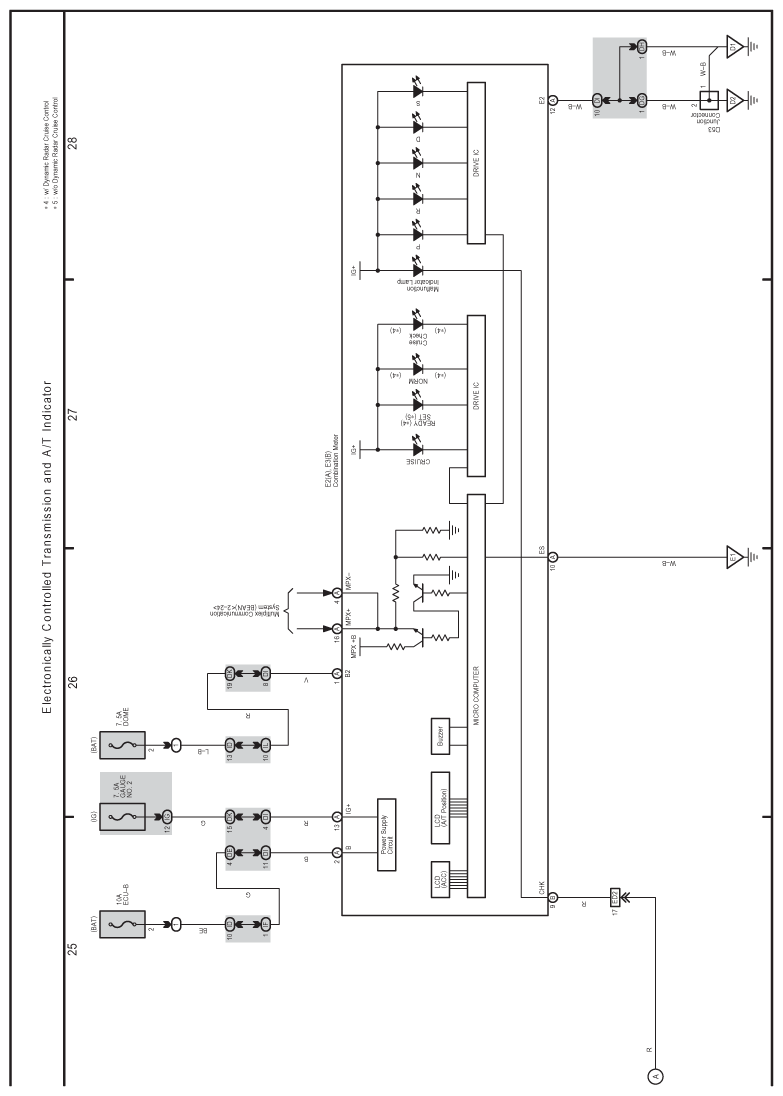

Fig 6: Electronically Controlled Transmission And A /T Indicator Electrical Wiring Diagram (1 Of 2)

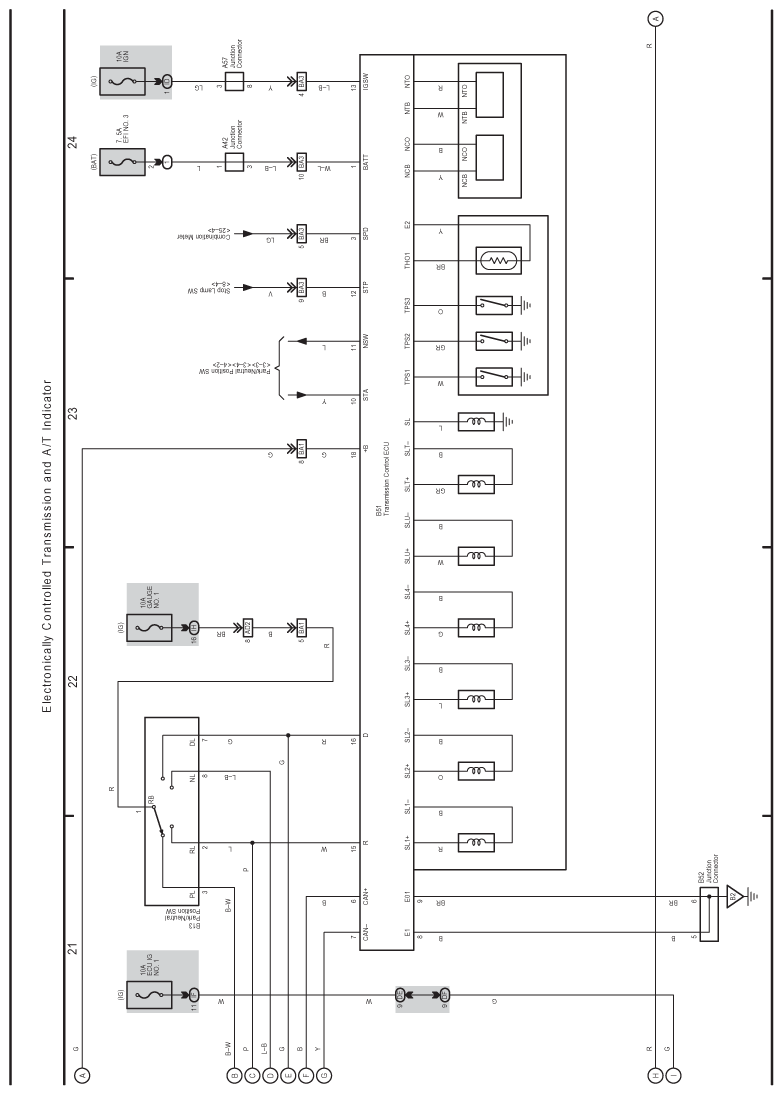

Fig 7: Electronically Controlled Transmission And A /T Indicator Electrical Wiring Diagram (2 Of 2)
