Avalon XLS
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Cigarette Lighter, Clock, Multi Display (w/o Navigation System), Rear Sunshade
Cigarette Lighter, Clock, Multi Display (w/o Navigation System), Rear Sunshade

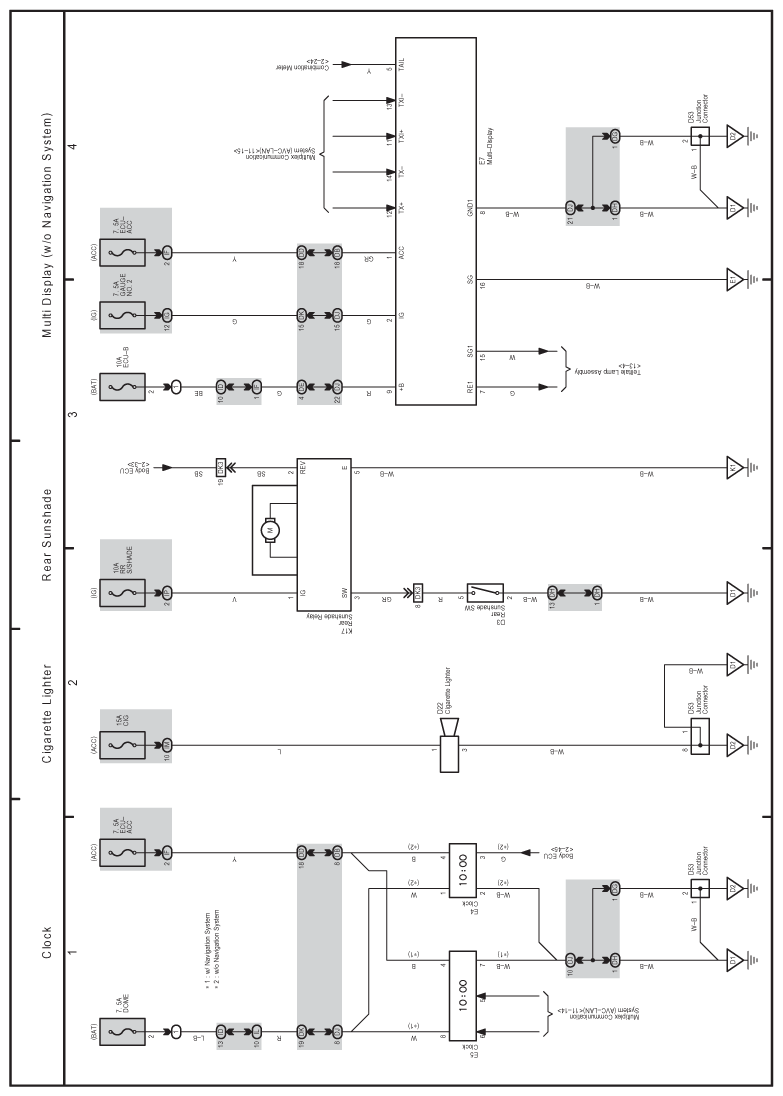

Fig 1: Cigarette Lighter And Rear Sunshade Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
