Overall Electrical Wiring Diagram
>>
Charging, Starting (w/o Smart Key System)
Charging, Starting (w/o Smart Key System)

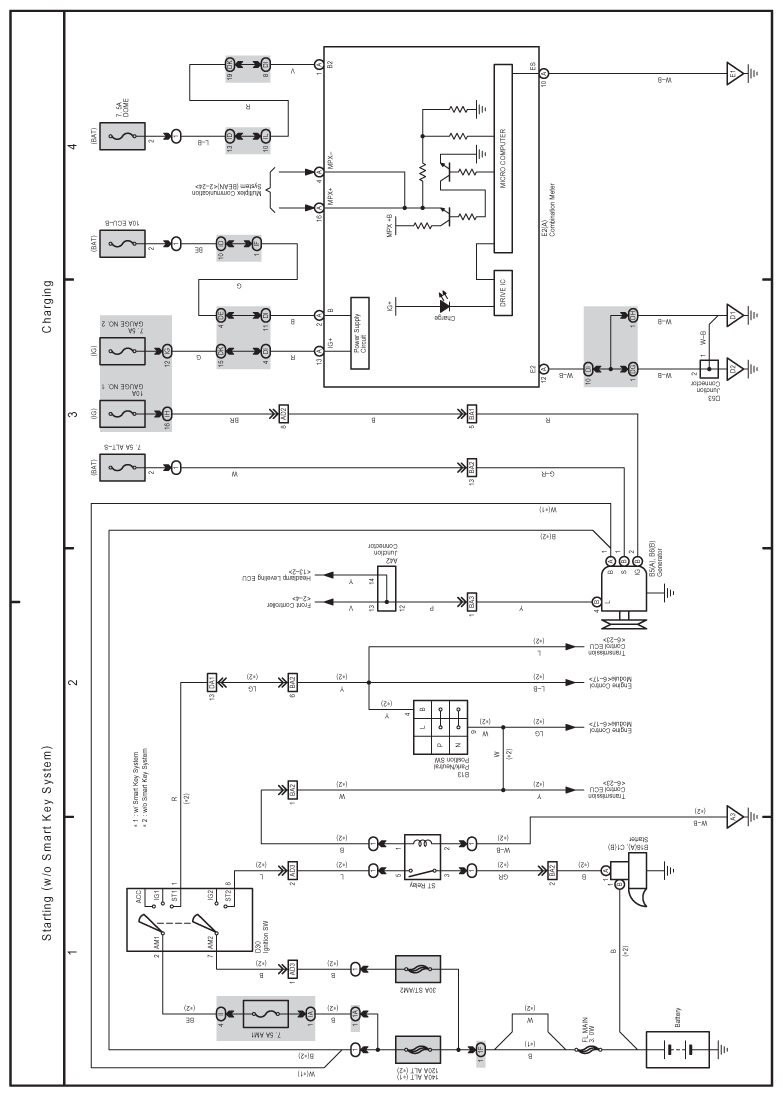

Fig 1: Starting (W/O Smart Key System) And Charging Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
