Avalon XLS
>>
Repair and Diagnosis
>>
Electrical
>>
Motors, Switches, Relays
>>
OEM Overall Electrical Wiring Diagram
>>
Overall Electrical Wiring Diagram
>>
Back-Up Light, Stop Light
Back-Up Light, Stop Light

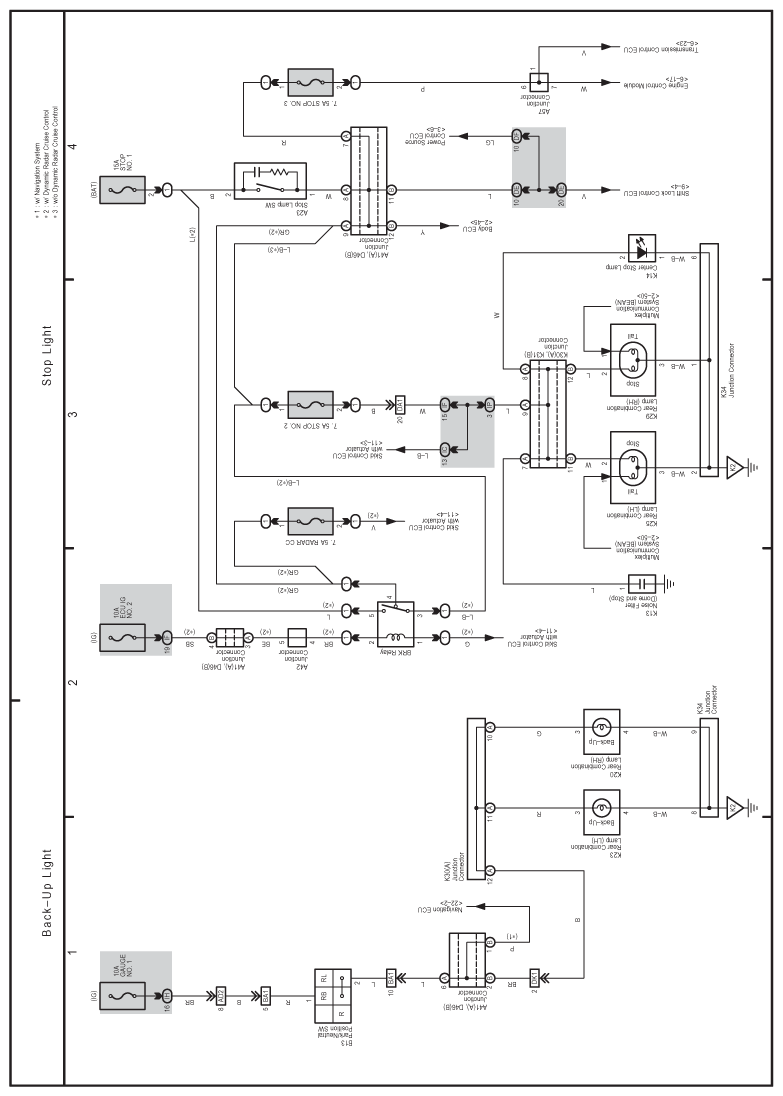

Fig 1: Back-Up Light And Stop Light Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
