Audio System (9 Speaker)

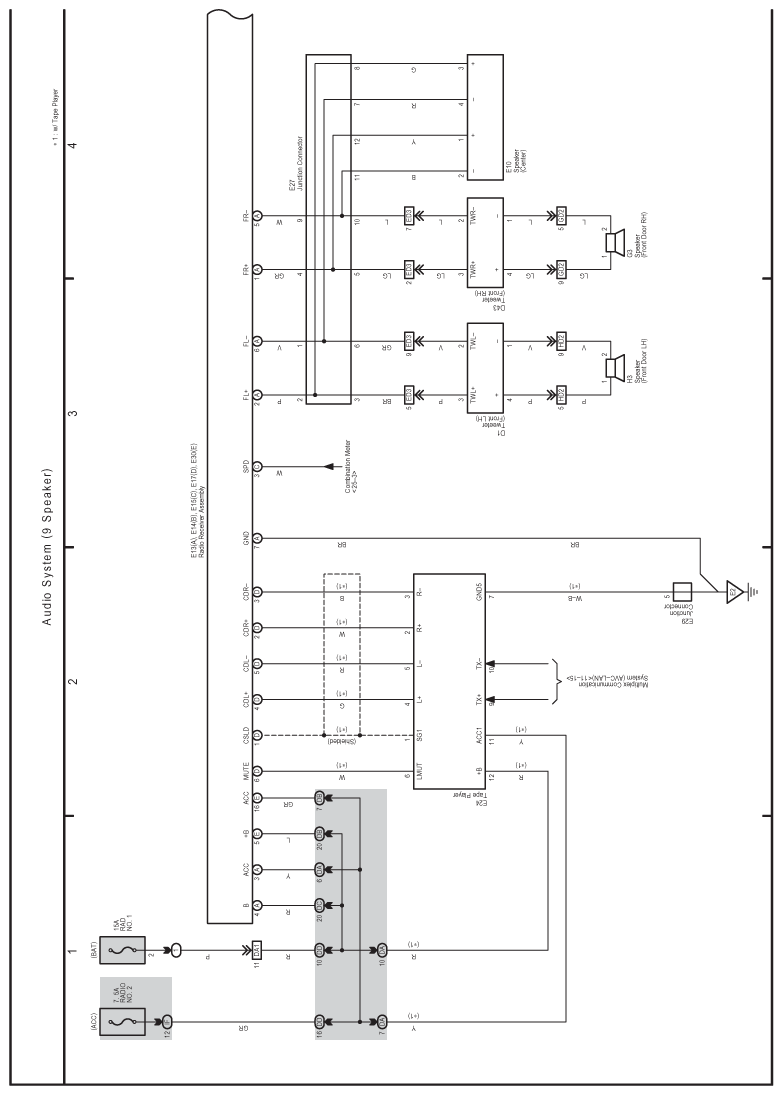

Fig 1: Audio System (9 Speaker) Electrical Wiring Diagram (1 Of 2)
G07615408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

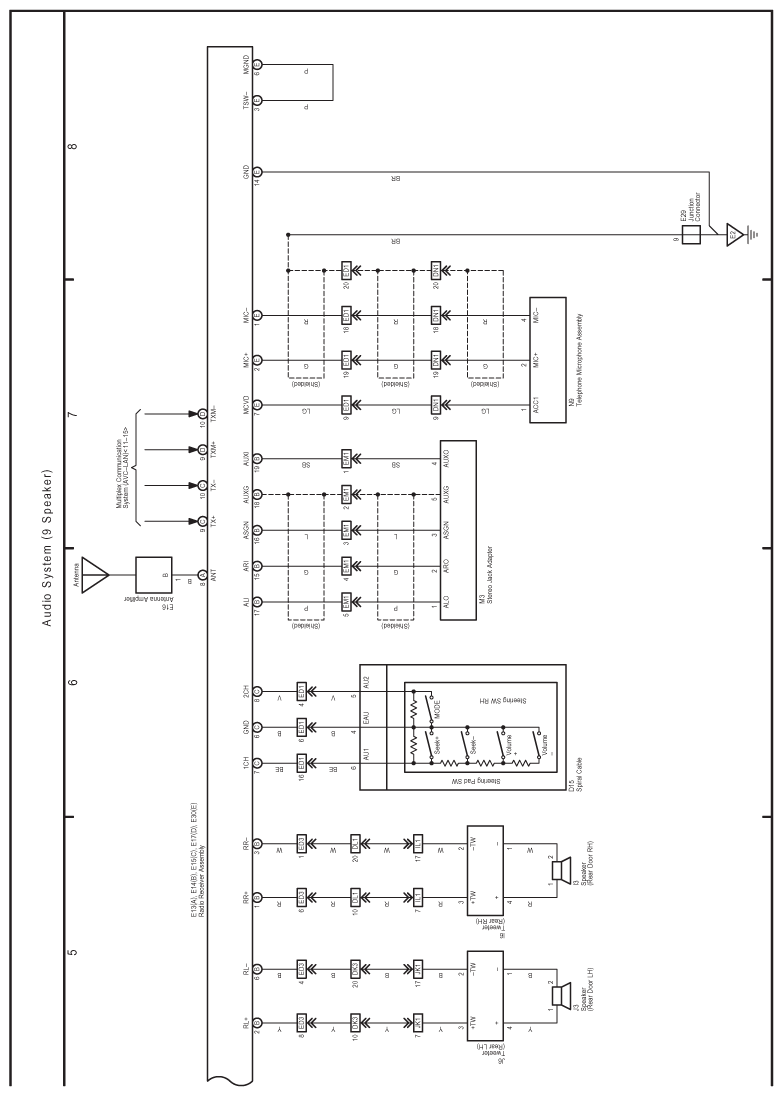

Fig 2: Audio System (9 Speaker) Electrical Wiring Diagram (2 Of 2)
G07615409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
