Audio System (12 Speaker)

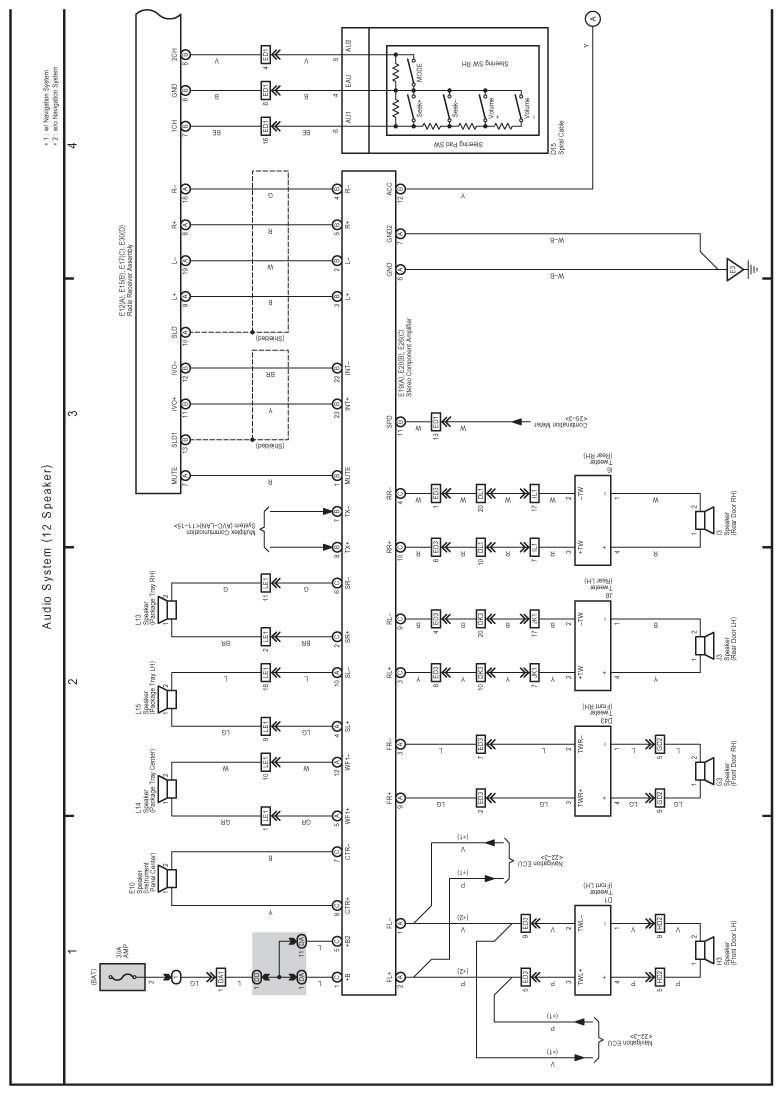

Fig 1: Audio System (12 Speaker) Electrical Wiring Diagram (1 Of 3)
G07615405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

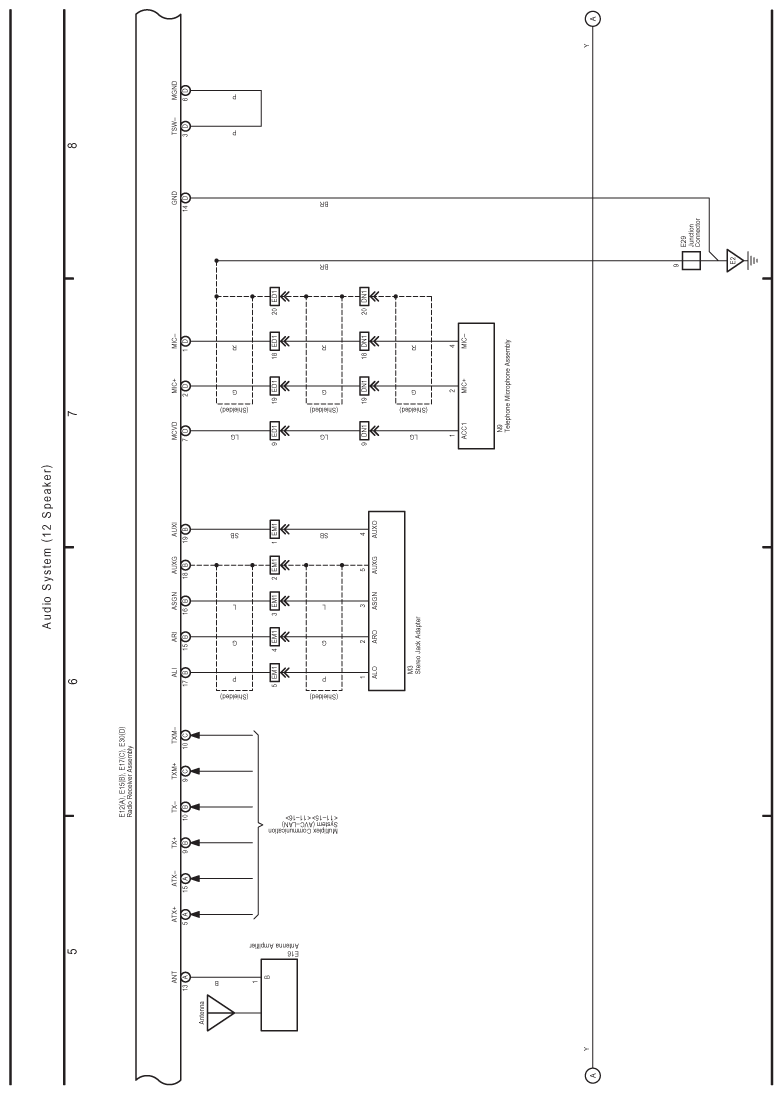

Fig 2: Audio System (12 Speaker) Electrical Wiring Diagram (2 Of 3)
G07615406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

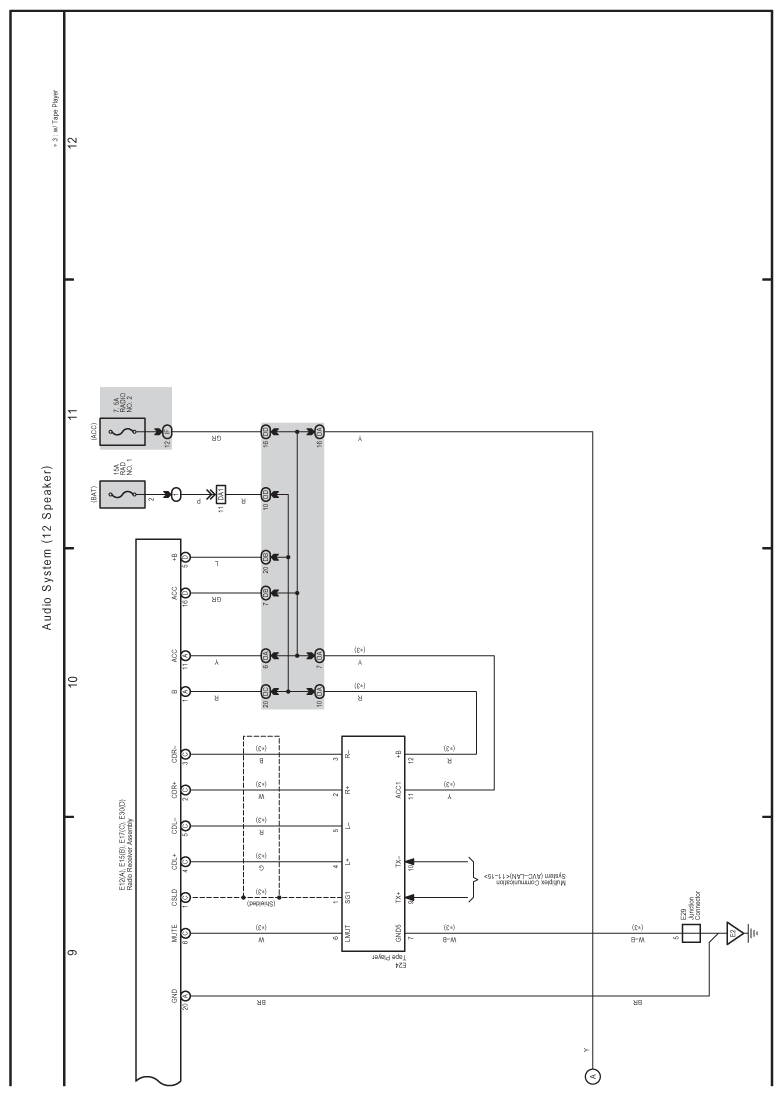

Fig 3: Audio System (12 Speaker) Electrical Wiring Diagram (3 Of 3)
G07615407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
