ABS, Multiplex Communication System (AVC-LAN), Multiplex Communication System (CAN), TRAC, VSC

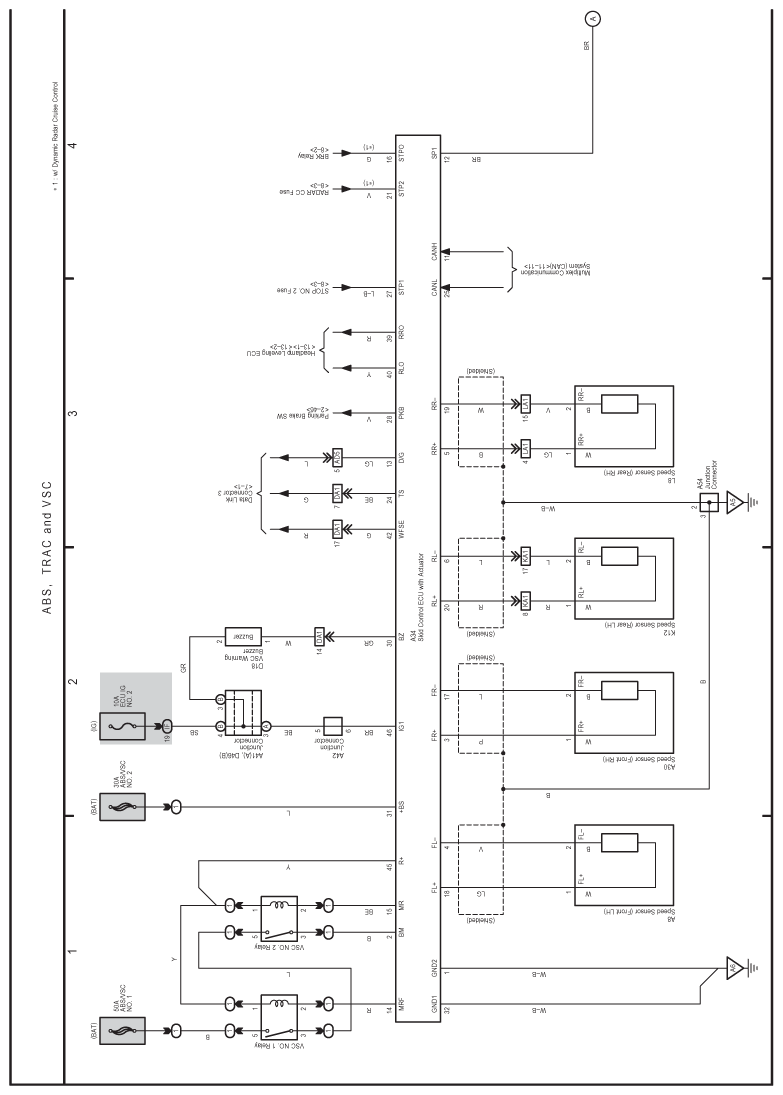

Fig 1: ABS, TRAC And VSC Electrical Wiring Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

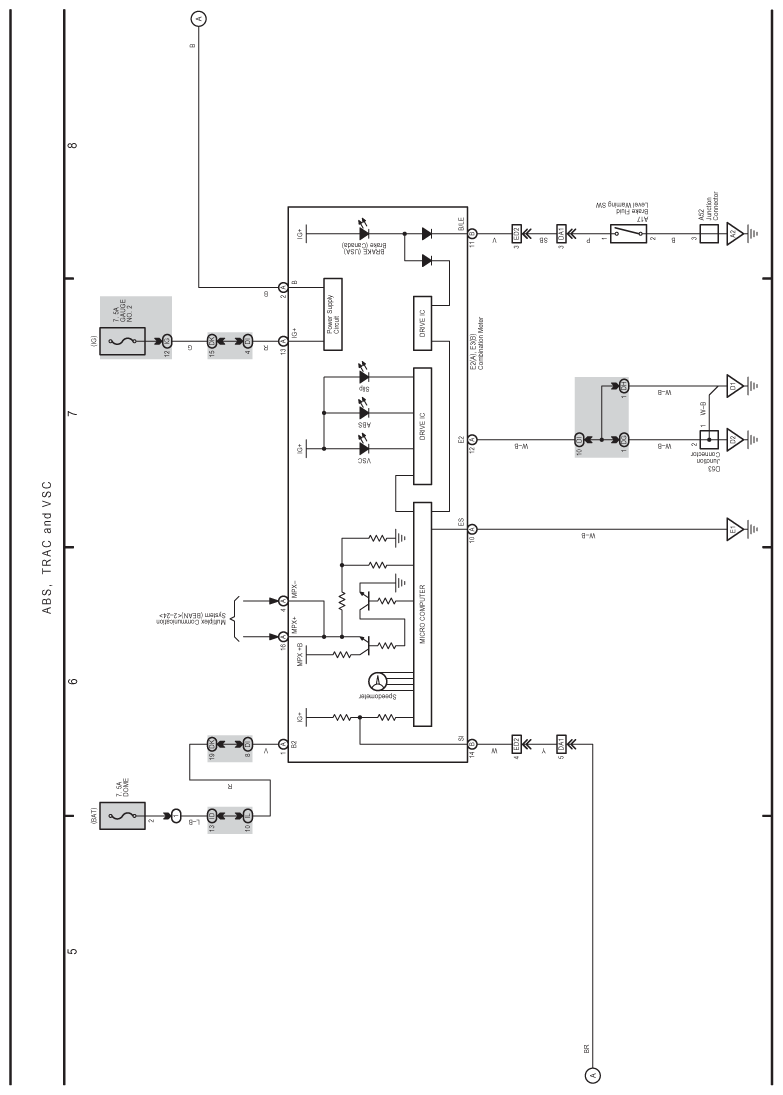

Fig 2: ABS, TRAC And VSC Electrical Wiring Diagram (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

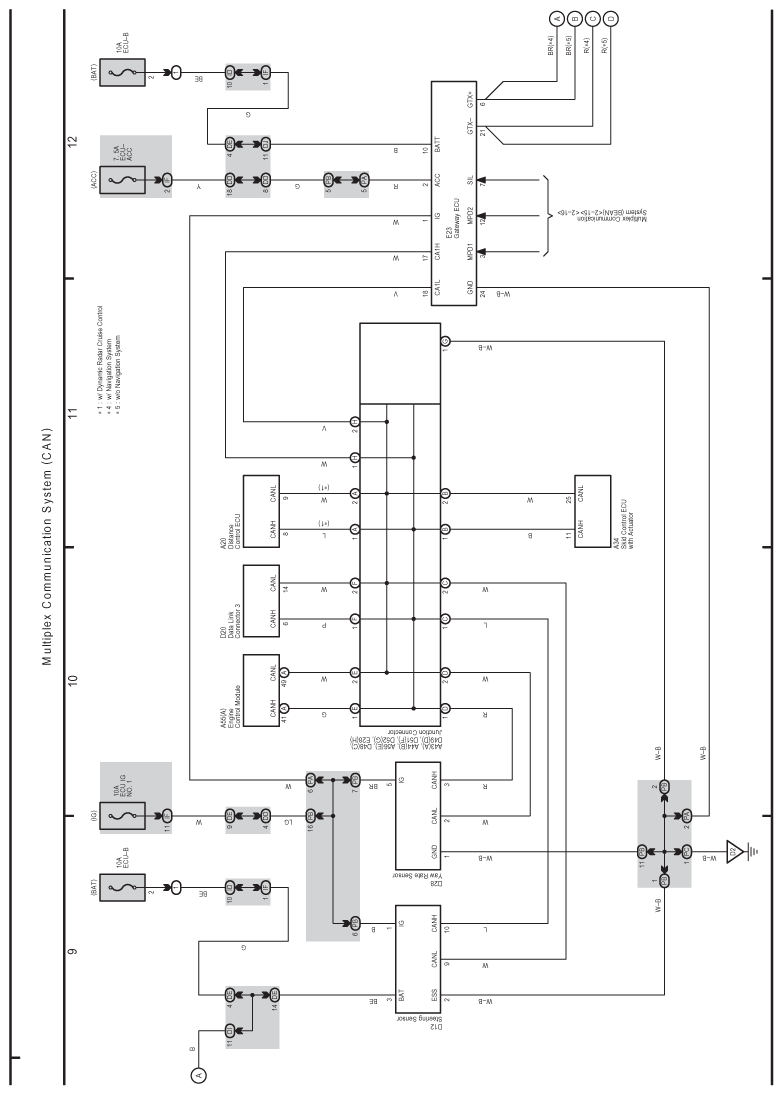

Fig 3: Multiplex Communication System (CAN) Electrical Wiring Diagram

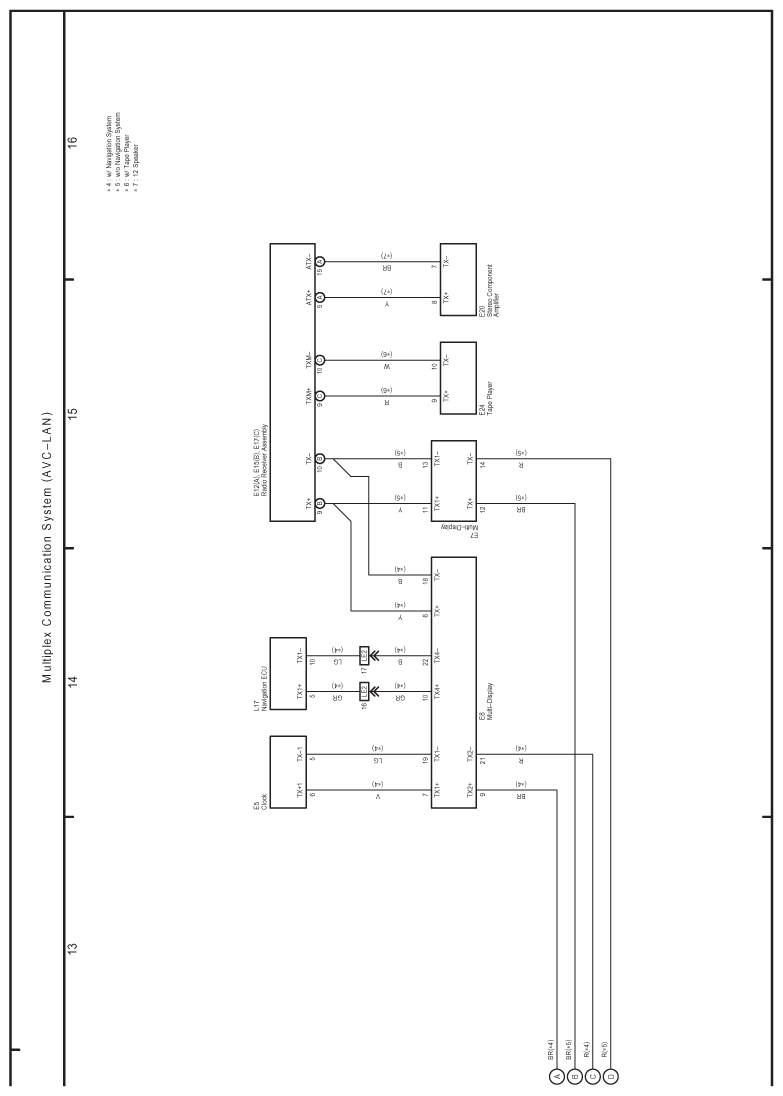

Fig 4: Multiplex Communication System (AVC-LAN) Electrical Wiring Diagram
