Brake Pedal: Components

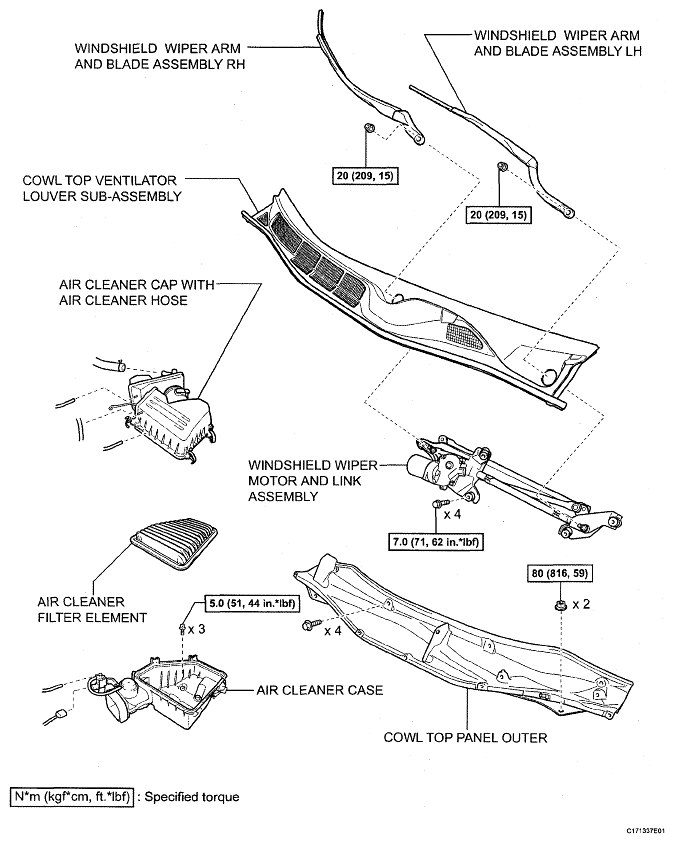

Fig 1: Brake Booster Replacement Components With Torque Specifications (1 Of 3)
G05408068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

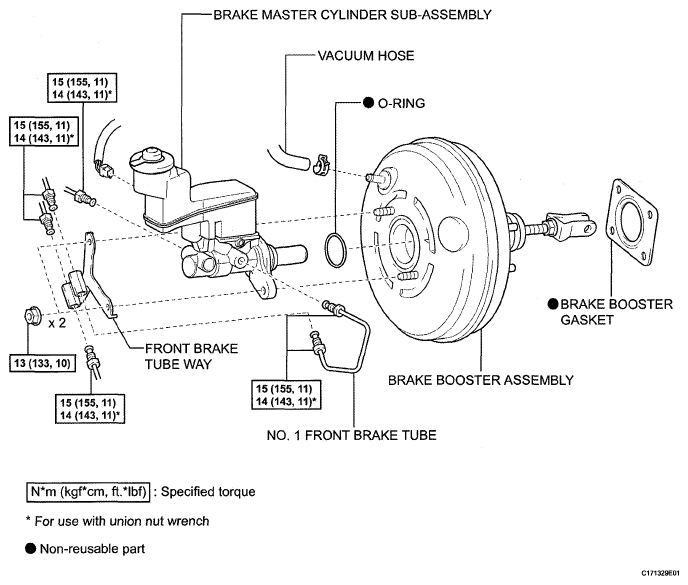

Fig 2: Brake Pedal Replacement Components With Torque Specifications (2 Of 5)
G05408069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Brake Pedal Replacement Components With Torque Specifications (3 Of 5)
G05408070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

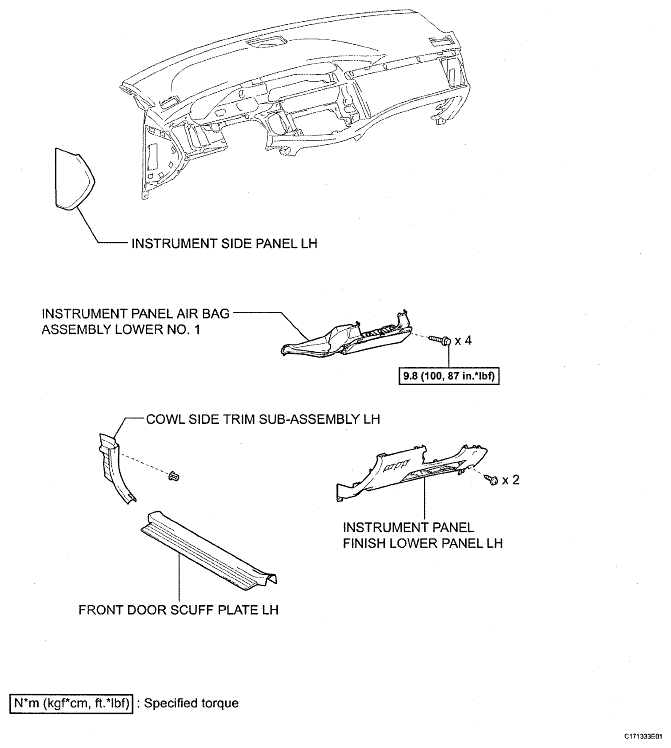

Fig 4: Brake Pedal Replacement Components With Torque Specifications (4 Of 5)
G05408071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

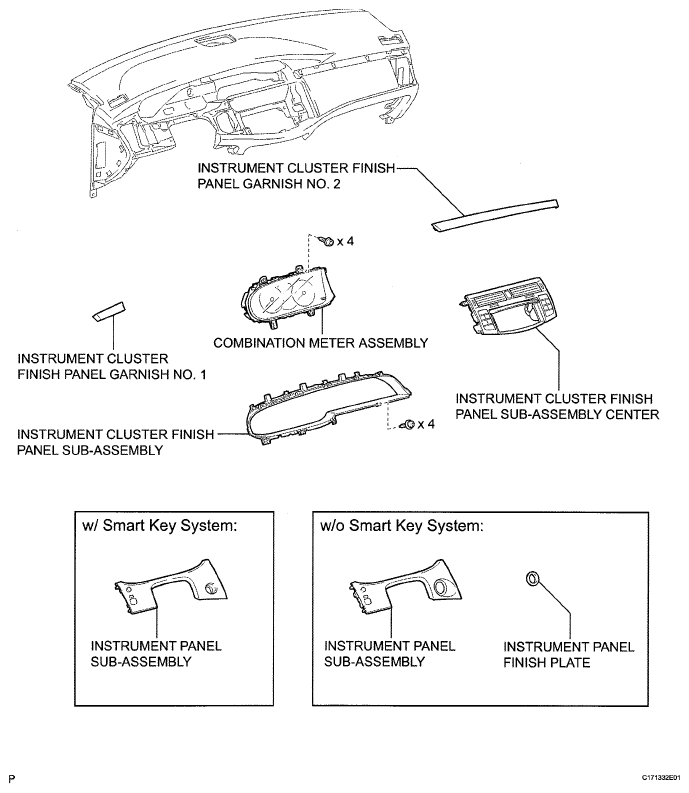

Fig 5: Brake Pedal Replacement Components With Torque Specifications (5 Of 5)
G05001659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
