Brake Master Cylinder: Installation

INSTALL BRAKE MASTER CYLINDER SUB-ASSEMBLY
1. Install a new O-ring to the brake master cylinder sub-assembly.
2. Install the brake master cylinder sub-assembly and front brake tube way with the 2 nuts.
  Torque: 13 N*m (133 kgf*cm, 10 ft.*lbf)
3. Install the No. 1 front brake tube to the brake master cylinder sub-assembly.

  Fig 1: Locating Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

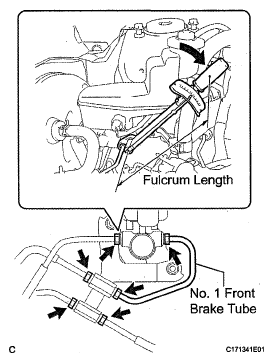

4. Using a union nut wrench (10 mm), connect the 6 brake lines.
  Torque: without union nut wrench 15 N*m (155 kgf*cm, 11 ft.*lbf)

  with union nut wrench 14 N*m (143 kgf*cm, 11 ft.*lbf)
  NOTE:
  - Use a torque wrench with a fulcrum length of 250 mm (9.84 in.).
  - This torque value is effective when the union nut wrench is parallel to the torque wrench.

    Fig 2: Locating Brake Lines
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the connector and engage the clamp.
FILL RESERVOIR WITH BRAKE FLUID (See BLEEDING )
BLEED BRAKE MASTER CYLINDER (See BLEEDING )
BLEED BRAKE LINE (See BLEEDING )

Fig 3: Locating Clamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
BLEED BRAKE ACTUATOR (w/VSC) (See BLEEDING )
INSPECT FOR BRAKE FLUID LEAK
INSPECT FLUID LEVEL IN RESERVOIR (See BLEEDING )
INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE (See INSTALLATION )
