Brake Booster: Components

Fig 1: Brake Booster Replacement Components With Torque Specifications (1 Of 3)
G05408068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Brake Master Cylinder Replacement Components With Torque Specifications (2 Of 3)
G05408087Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

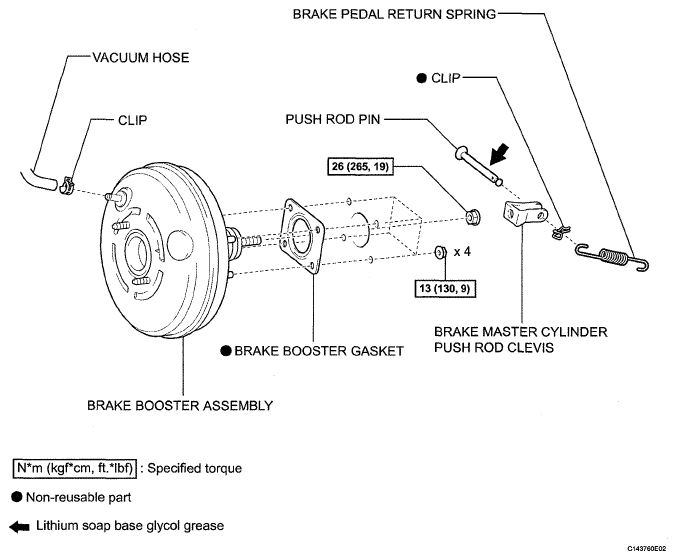

Fig 3: Brake Booster Replacement Components With Torque Specifications (3 Of 3)
G05408101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
