Inspection Procedure
- PERFORM ACTIVE TEST BY TECHSTREAM (TACHOMETER OPERATION)
- Connect Techstream to the DLC3.
- Ignition switch on (IG).
- Turn the tester on.
- Enter the following menus: Body Electrical / Combination Meter / Active Test.
- Check the operation by referring to the table below.
Combination Meter:
ACTIVE TEST DETAIL - COMBINATION METERTester Display Test Part Control Range Tacho Meter Operation Tachometer 0, 1000, 2000, 3000,4000, 5000, 6000, 7000 (rpm) OK:
Needle indication is normal.
NG: REPLACE COMBINATION METER ASSEMBLY
OK: Go to next step
- READ VALUE OF TECHSTREAM (ENGINE RPM)
- Connect Techstream to the DLC3.
- Start the engine.
- Turn the tester on.
- Enter the following menus: Body Electrical / Combination Meter / Data List.
- Check the values by referring to the table below.
Combination Meter:
DATA LIST - COMBINATION METERTester Display Measurement Item/Range Normal Condition Diagnostic Note Engine Rpm Engine speed/Min.: 0 rpm, Max.: 12750 rpm Almost same as actual engine speed (When engine is running) If data received from the ECM exceeds the range that can be displayed on the meter, the meter continues to display the maximum value of the range. OK:
Engine speed displayed on the tester is almost the same as the actual engine speed.
NG: Go to step 3
OK : REPLACE COMBINATION METER ASSEMBLY
- READ VALUE OF TECHSTREAM (ENGINE SPEED)
- Connect Techstream to the DLC3.
- Ignition switch on (IG).
- Turn the tester ON.
- Enter the following menus: Powertrain / Engine and ECT / Data List.
- Check the values by referring to the table below.
Engine and ECT:
DATA LIST - ENGINE AND ECTTester Display Measurement Item/Range Normal Condition Engine Speed Engine speed/Min.: 0 rpm, Max.: 16383.75 rpm Almost same as actual engine speed (When engine is running) OK:
Engine speed displayed on the tester is almost the same as the actual engine speed.
NG: GO TO ENGINE CONTROL SYSTEM (2GR-FE)
OK: Go to next step

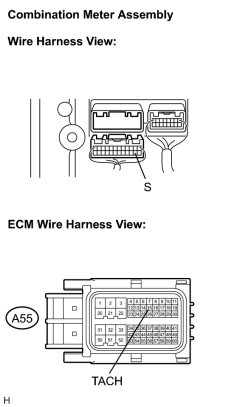

- CHECK HARNESS OR CONNECTOR (ECM - COMBINATION METER)
- Disconnect the E2 and A55 connectors.
- Measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ResistanceTester Connection (Symbols) Condition Specified Condition E2-14 (S) - A55-55 (TACH) Always Below 1 E2-14 (S) - Body Ground Always 10 or higher NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: GO TO STEP 5
- INSPECT ECM (INPUT WAVEFORM)
- Check the input signal waveform.
- Disconnect the E2 connector.
- Connect the oscilloscope to the terminals E2-14 (S) and body ground.
- Start the engine.
- Check the signal waveform according to the condition(s) in the table below.WAVEFORM REFERENCE
Item Condition Tool setting 5V/DIV., 10 ms./DIV. Vehicle condition Engine idle speed OK:
The waveform is displayed as shown in the illustration.
NG: Replace ECM
OK : REPLACE COMBINATION METER ASSEMBLY
- Check the input signal waveform.
