Front Passenger Side Seat Belt Warning Light Malfunction: Wiring Diagram

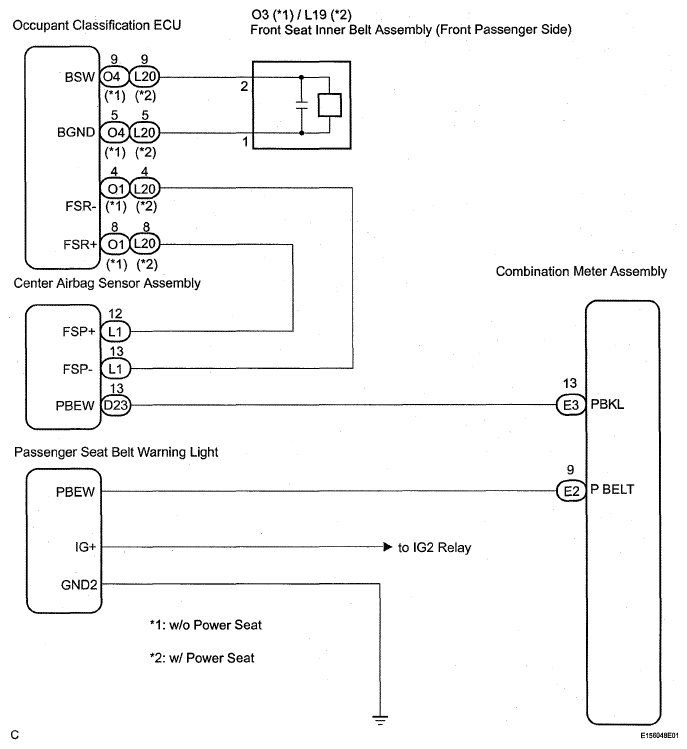

Fig 1: Front Seat Inner Belt (Front Passenger Side) - Wiring Diagram

G05407687

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
