Entire Combination Meter does not Operate: Wiring Diagram

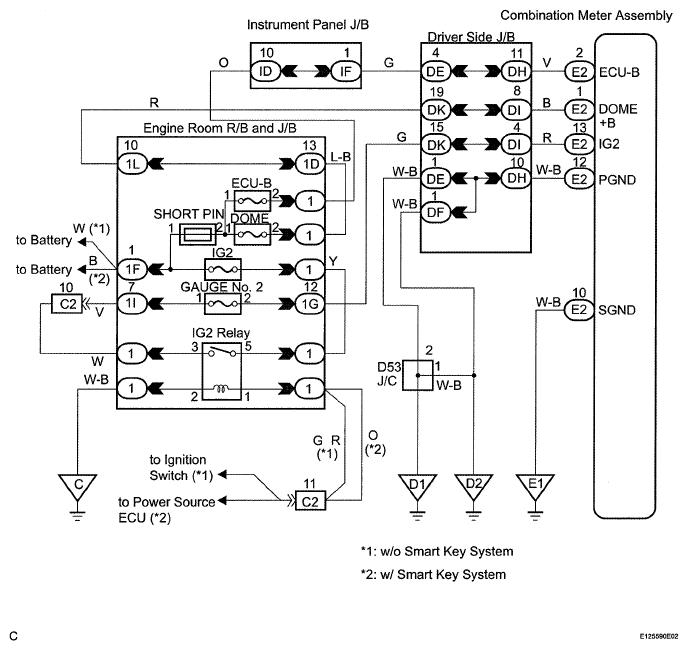

Fig 1: Combination Meter - Wiring Diagram

G05407669

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
