Engine Coolant Temperature Receiver Gauge Malfunction: Wiring Diagram

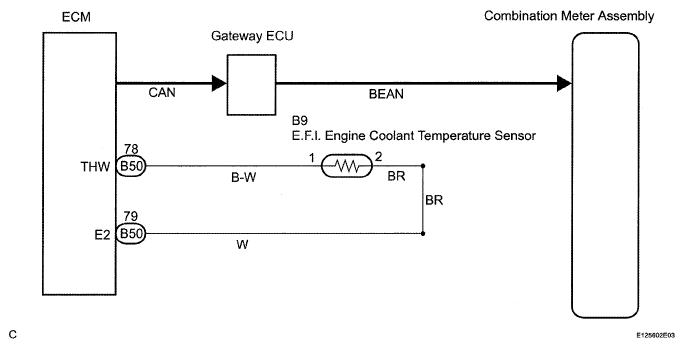

Fig 1: Engine Coolant Temperature Sensor - Wiring Diagram

G05407683

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
