Clock Display Circuit: Wiring Diagram

Fig 1: Clock Display Circuit - Wiring Diagram (W/O Navigation System)
G00465553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

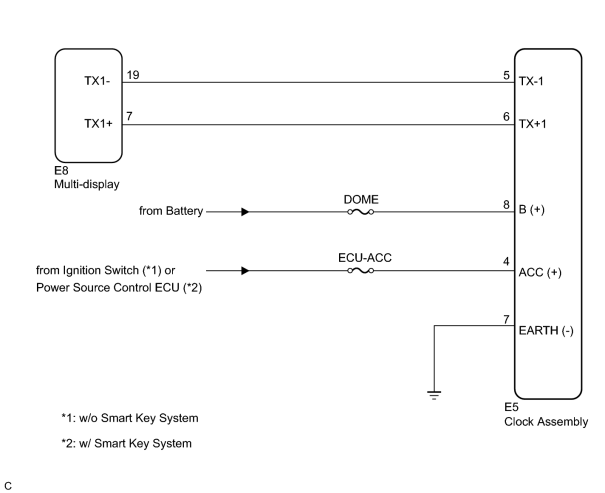

Fig 2: Clock Display Circuit - Wiring Diagram (W/ Navigation System)
G00465554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
