Instrument Panel Safety Pad: Installation

  1. INSTALL INSTRUMENT PANEL SAFETY PAD
    1. Attach the 6 claws and 3 clips to install the instrument panel.
    2. Install the 2 bolts.
    3. Install the 3 screws.

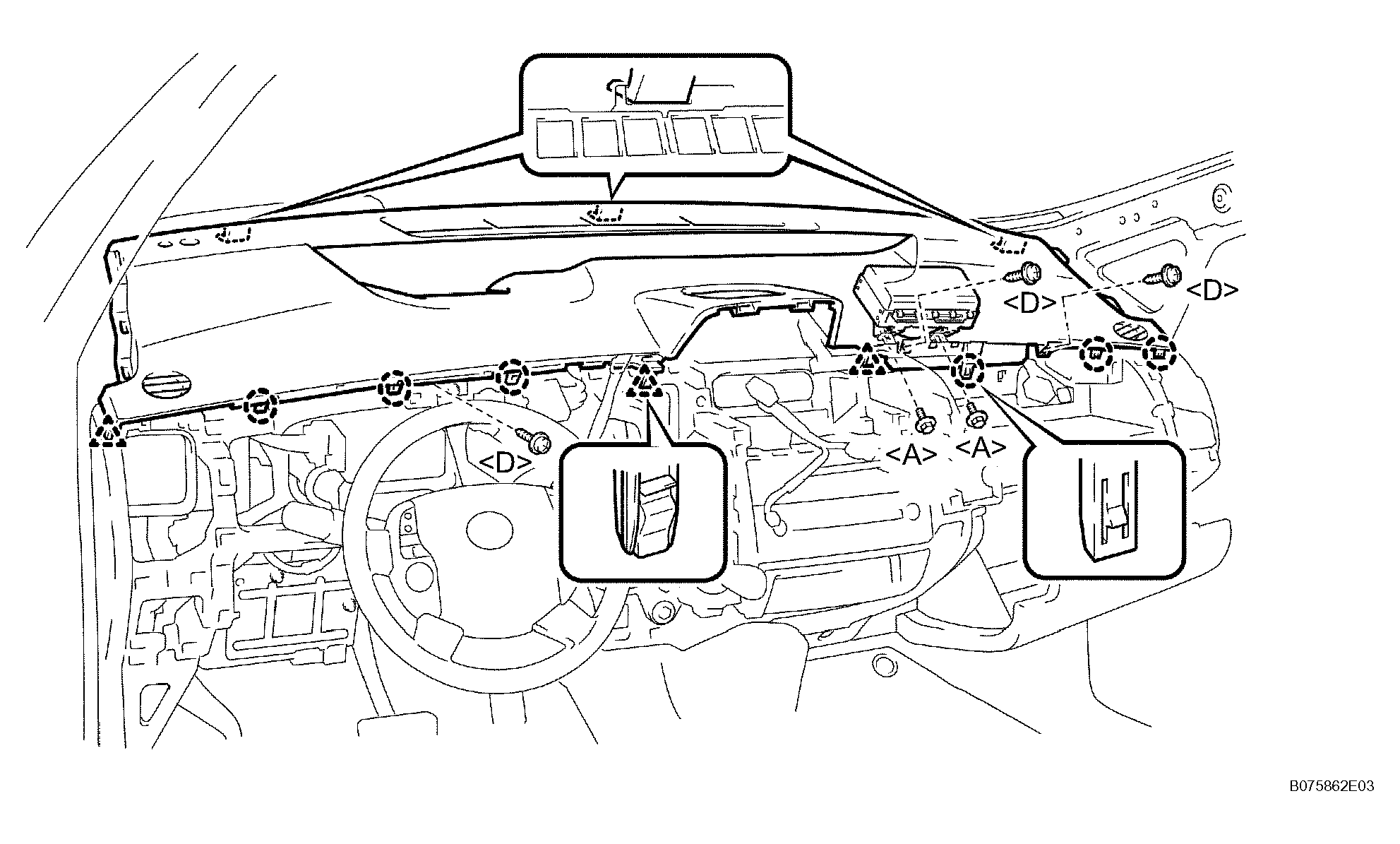

      4. Fig 1: Installing Instrument Panel Safety Pad
      G04476902Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CONNECT PASSENGER AIRBAG CONNECTOR
  3. INSTALL FRONT PILLAR GARNISH LH (See  INSTALLATION  )
  4. INSTALL FRONT PILLAR GARNISH RH (See  INSTALLATION  )
  5. INSTALL FRONT PILLAR GARNISH CORNER PIECE LH (See  INSTALLATION  )
  6. INSTALL FRONT PILLAR GARNISH CORNER PIECE RH (See  INSTALLATION  )
  7. INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (w/JBL Sound System)
  8. INSTALL GLOVE COMPARTMENT DOOR
    1. Attach the claw and 2 clips to install the glove compartment door.
    2. Install the 2 screws.

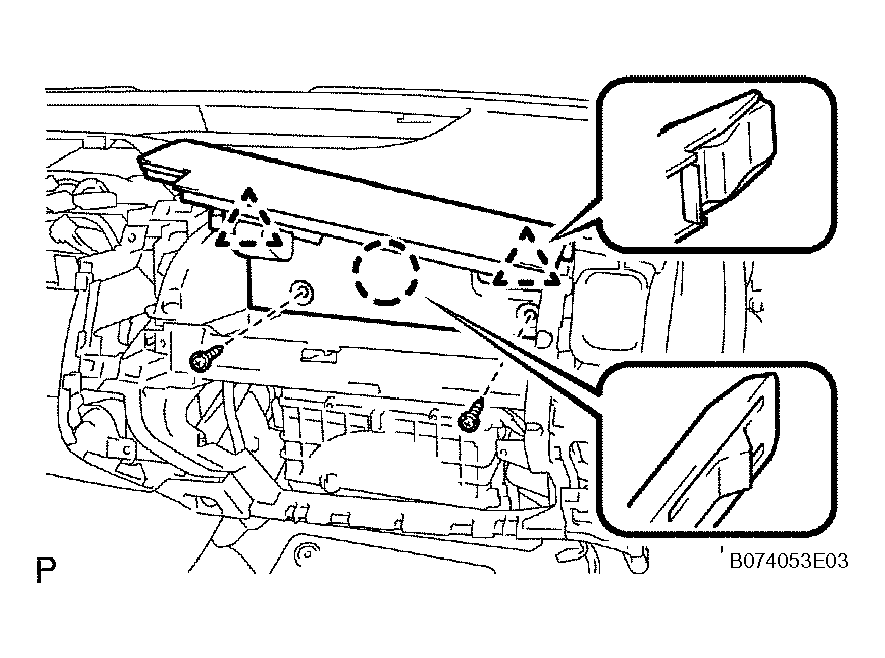

    Fig 2: Installing Glove Compartment Door
    G04476903Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL INSTRUMENT PANEL HOLE COVER
    1. Install the 2 instrument panel hole covers.
  10. INSTALL INSTRUMENT CLUSTER FINISH PANEL END
  11. INSTALL INSTRUMENT PANEL CUSHION
  12. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Attach the 2 hinges to install the door.
    2. While pushing in the sides of the glove compartment door as indicated by the arrows in the illustration, engage it to the 2 stoppers.

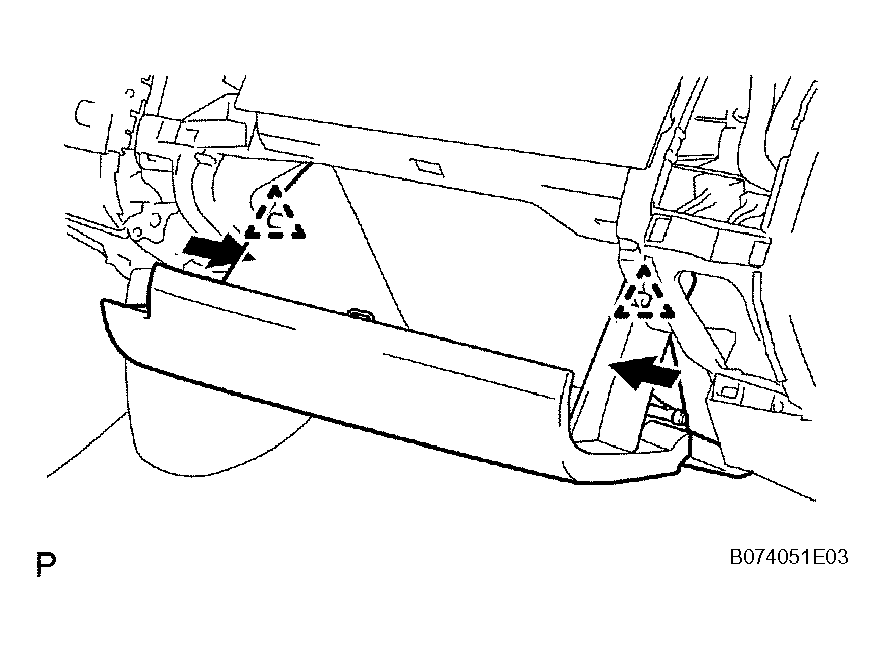

    Fig 3: Installing Glove Compartment Door Assembly
    G04476904Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
  14. INSTALL MULTI-DISPLAY ASSEMBLY
  15. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Attach the 2 claws and 4 clips to install the instrument panel register.

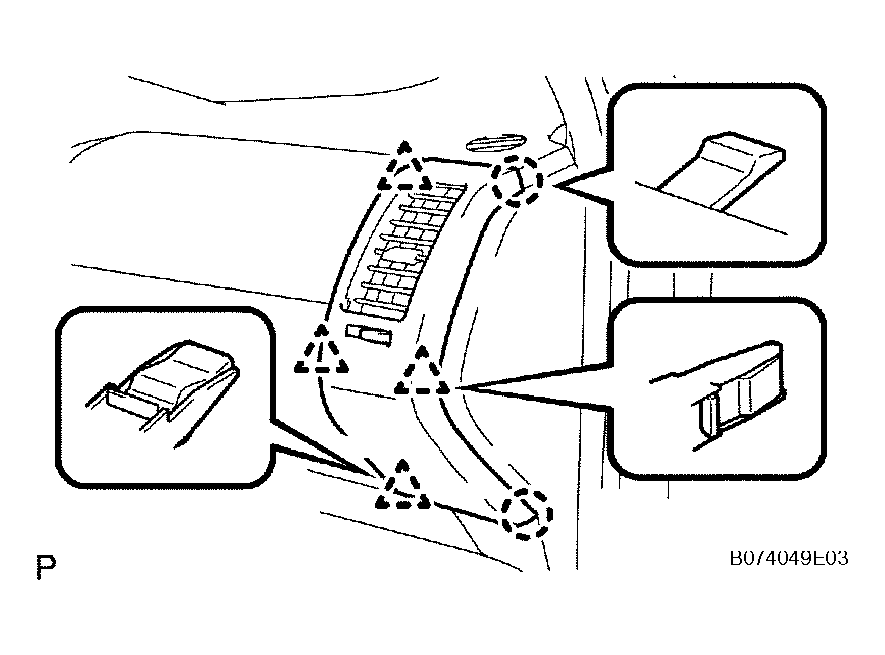

      2. Fig 4: Installing No. 2 Instrument Panel Register Assembly
      G04476905Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Attach the 6 clips to install the instrument panel register.

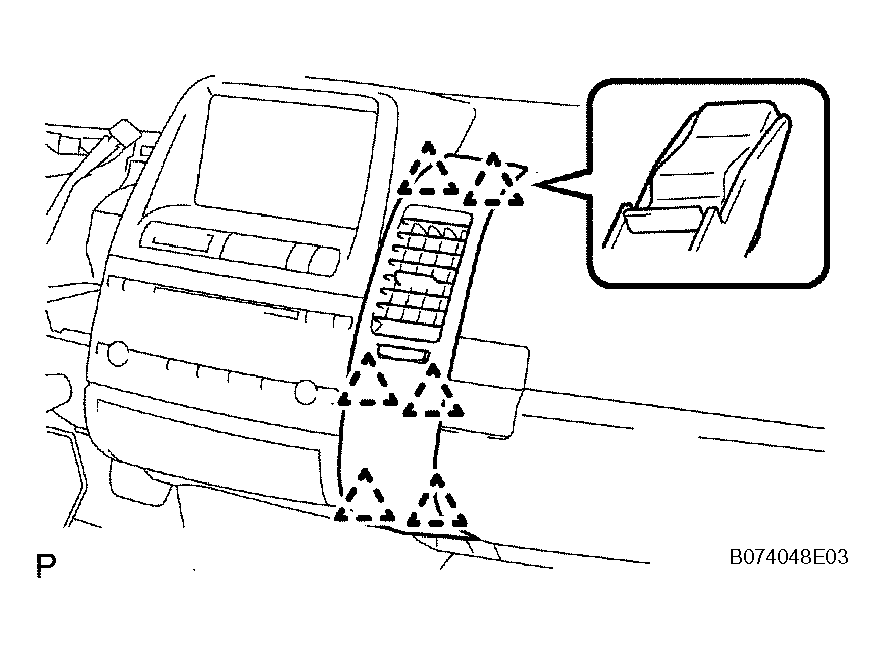

      Fig 5: Installing No. 4 Instrument Panel Register Assembly
      G04476906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Connect the connector.
    2. Attach the claw and 5 clips to install the instrument panel register.

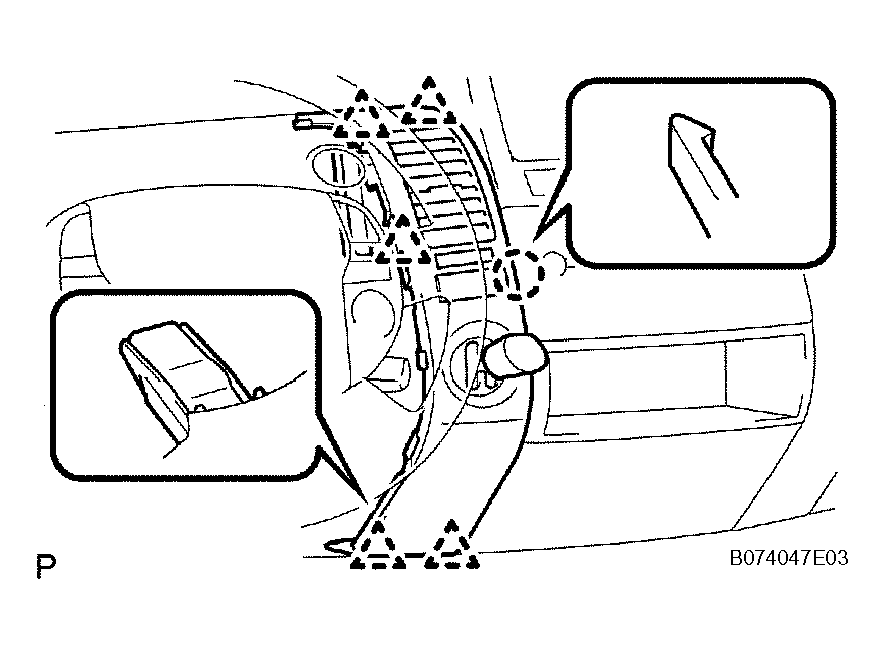

      Fig 6: Installing No. 3 Instrument Panel Register Assembly
      G04476907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
    1. Connect the connector.
    2. Attach the 3 claws and 4 clips to install the instrument panel finish panel.

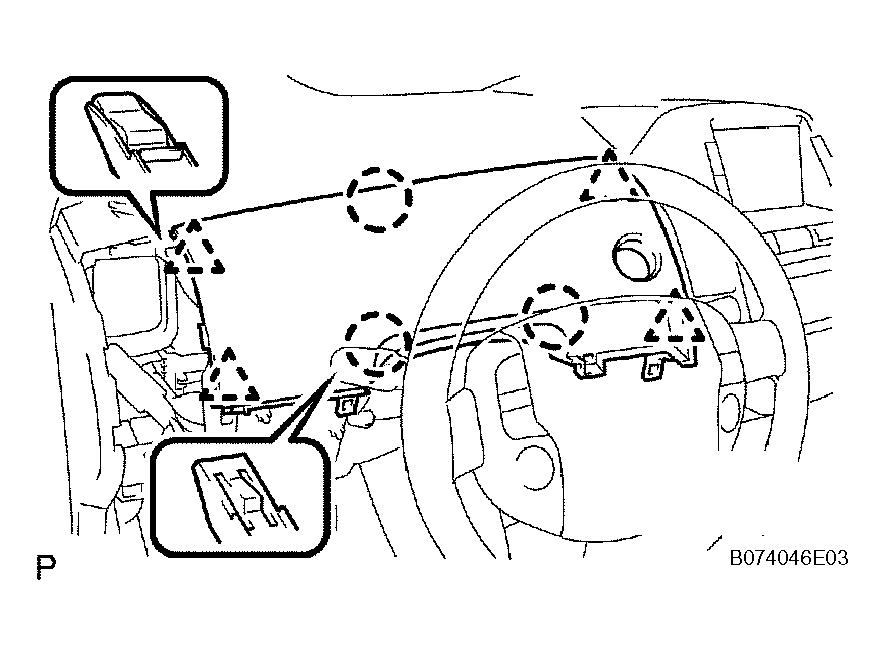

      3. Fig 7: Installing Upper Instrument Panel Finish Panel Sub-Assembly
      G04476908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
    1. Connect the connectors.
    2. Attach the 4 claws and 5 clips to install the instrument panel finish panel.
    3. Connect the hood lock control cable.
    4. Install the 2 screws.

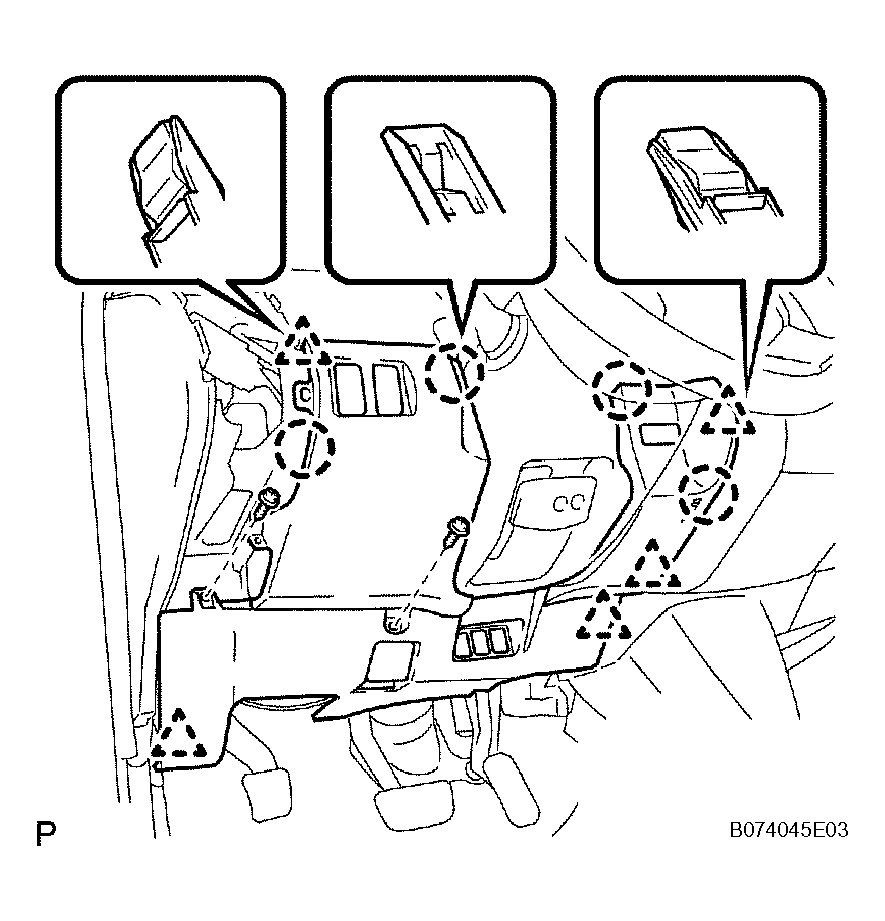

      5. Fig 8: Installing Lower Instrument Panel Finish Panel Sub-Assembly
      G04476909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Attach the 2 claws and 4 clips to install the instrument panel register.

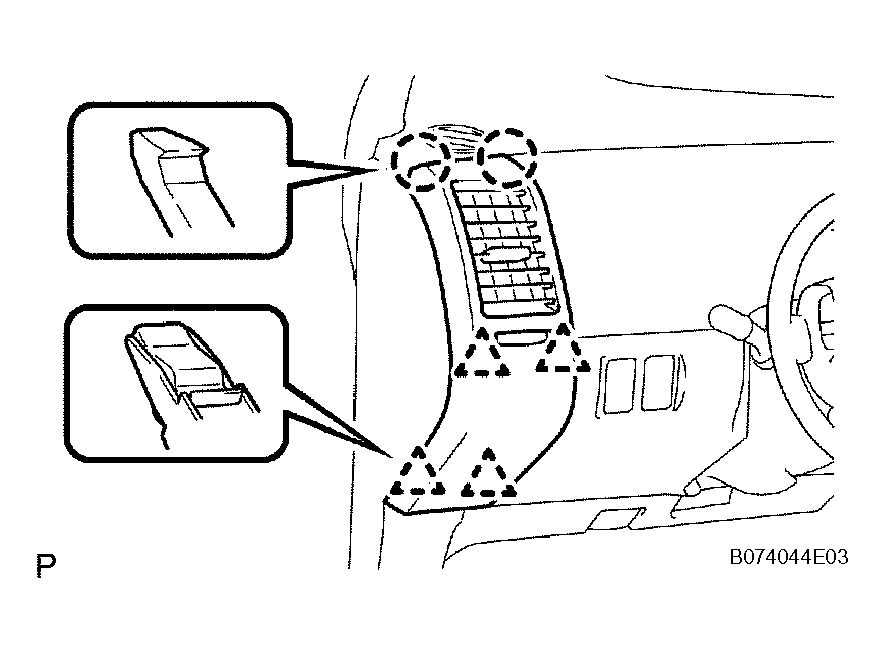

    Fig 9: Installing No. 1 Instrument Panel Register Assembly
    G04476910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  22. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  23. CHECK SRS WARNING LIGHT
    1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
