Spiral Cable: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
  2. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  3. REMOVE LOWER NO. 3 STEERING WHEEL COVER  (See REMOVAL  )
  4. REMOVE LOWER NO. 2 STEERING WHEEL COVER  (See REMOVAL  )
  5. REMOVE STEERING PAD  (See STEERING PAD  )
  6. REMOVE STEERING WHEEL ASSEMBLY  (See REMOVAL )
  7. REMOVE LOWER STEERING COLUMN COVER  (See REMOVAL )
  8. REMOVE UPPER STEERING COLUMN COVER  (See REMOVAL )
  9. REMOVE SPIRAL CABLE
    1. Disconnect the connectors from the spiral cable with steering sensor.
      NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
    2. Detach the 3 claws and remove the spiral cable with steering sensor.

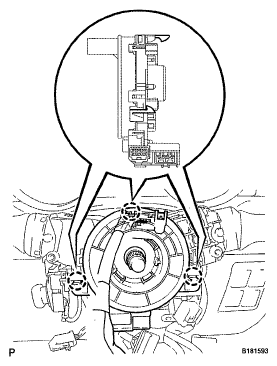

      Fig 1: Identifying Spiral Cable With Claws
      G05631436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Detach the 6 claws and remove the spiral cable from the steering sensor.
