Terminals Of Ecu

  1. CHECK RADIO RECEIVER

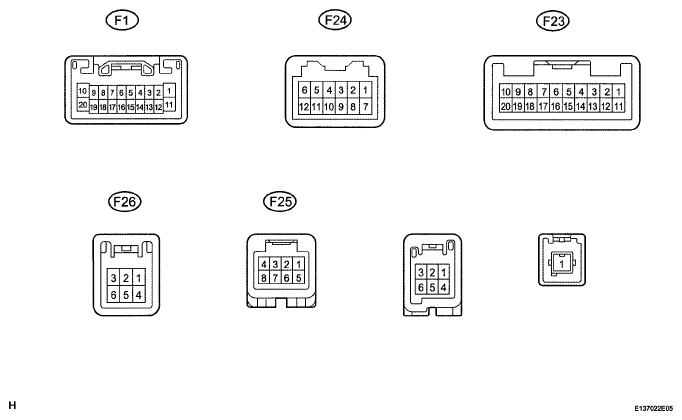

    Fig 1: Identifying Radio Receiver Connector Terminals
    G05630162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the F1 receiver connector.
    2. Measure the resistance and voltage according to the value(s) in the table below.
      RESISTANCE AND VOLTAGE REFERENCE CHART

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specification
      F1-1 (B) - F1-20 (GND) L - BR Battery Always 11 to 14 V
      F1-20 (GND) - Body ground BR - Body ground Ground Always Below 1 Ω
      F1-11 (ACC) - F1-20 (GND) GR - BR Accessory (ON) Engine switch off Below 1 V
      F1-11 (ACC) - F1-20 (GND) GR - BR Accessory (ON) Engine switch on (ACC) 11 to 14 V

      If the result is not as specified, there may be a malfunction on the wire harness side.

    3. Reconnect the F1 receiver connector.
    4. Measure the resistance, waveform and voltage according to the value(s) in the table below.
      TERMINAL DESCRIPTION CHART

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specification
      F1-2 (ILL+) - F1-20 (GND) G - BR Illumination signal Engine switch on (IG), light control switch off Below 1 V
      F1-2 (ILL+) - F1-20 (GND) G - BR Illumination signal Engine switch on (IG), light control switch tail or on 11 to 14 V
      F1-7 (MUTE) - F1-20 (GND) B - BR Mute signal Audio system playing → changing modes 3.5 V or higher → Below 1 V
      F1-8 (R+) - F1-20 (GND) B - BR Sound signal (right) Audio system playing Waveform synchronized with sound is output
      F1-9 (L+) - F1-20 (GND) R - BR Sound signal (left) Audio system playing Waveform synchronized with sound is output
      F1-18 (R-) - F1-20 (GND) W - BR Sound signal (right) Audio system playing Waveform synchronized with sound is output
      F1-19 (L-) - F1-20 (GND) G - BR Sound signal (left) Audio system playing Waveform synchronized with sound is output
      F1-10 (SLD) - F1-20 (GND) Shielded - BR Shielded ground Always Below 1 V
      F24-5 (CDL-) - F1-20 (GND)* R - BR Sound signal (left) RSE system playing Waveform synchronized with sound is output
      F24-4 (CDL+) - F1-20 (GND)* L - BR Sound signal (left) RSE system playing Waveform synchronized with sound is output
      F24-3 (CDR-) - F1-20 (GND)* W - BR Sound signal (right) RSE system playing Waveform synchronized with sound is output
      F24-2 (CDR+) - F1-20 (GND)* B - BR Sound signal (right) RSE system playing Waveform synchronized with sound is output
      F24-6 (MUTE) - F1-20 (GND)* G - BR Mute signal RSE system playing → changing modes 3.5 V or higher → Below 1 V
      F23-18 (R-L-) - F1-20 (GND)* R - BR Sound signal (left) RSE system playing Waveform synchronized with sound is output
      F23-17 (R-L+) - F1-20 (GND)* L - BR Sound signal (left) RSE system playing Waveform synchronized with sound is output
      F23-16 (R-R-) - F1-20 (GND)* W - BR Sound signal (right) RSE system playing Waveform synchronized with sound is output
      F23-15 (R-R+) - F1-20 (GND)* B - BR Sound signal (right) RSE system playing Waveform synchronized with sound is output
      F23-14 (RSLD) - Body ground* Shielded - Body ground Ground Always Below 1 V
      F23-19 (RMUT) - F1-20 (GND)* G - BR Mute signal RSE system playing → changing modes 3.5 V or higher → Below 1 V
      F25-7 (SLD2) - Body ground* Shielded - Body ground Ground Always Below 1 Ω
      F25-6 (SGD4) - F1-20 (GND)* W - BR Ground Always Below 1 Ω
      F25-5 (NTRO) - F1-20 (GND)* B - BR Display signal DVD image playing Pulse generation
      F1-12 (ILL-) - F1-20 (GND) W - BR Illumination signal Engine switch off Below 1 V
      F1-12 (ILL-) - F1-20 (GND) W - BR Illumination signal Engine switch on (IG) Pulse generation
      F23-9 (TX+) - F1-20 (GND) W - BR AVC-LAN communication signal Engine switch on (ACC) 2 to 3 V
      F23-10 (TX-) - F1-20 (GND) L - BR AVC-LAN communication signal Engine switch on (ACC) 2 to 3 V
      F1-5 (ATX+) - F1-20 (GND) R - BR AVC-LAN communication signal Engine switch on (ACC) 2 to 3 V
      F1-15 (ATX-) - F1-20 (GND) W - BR AVC-LAN communication signal Engine switch on (ACC) 2 to 3 V
      F1-13 (ANT) - F1-20 (GND) P - BR Power source of antenna Radio switch on and AM or FM 11 to 14 V
      F23-6 (SWG) - F1-20 (GND) W - BR Steering pad switch ground Always Below 1 V
      F23-7 (SW1) - F1-20 (GND) L - BR Steering pad switch signal Steering pad switch not pushed 4 V or higher
      F23-7 (SW1) - F1-20 (GND) L - BR Steering pad switch signal Steering pad switch seek+ switch pushed Below 0.5 V
      F23-7 (SW1) - F1-20 (GND) L - BR Steering pad switch signal Steering pad switch seek-switch pushed 0.8 V
      F23-7 (SW1) - F1-20 (GND) L - BR Steering pad switch signal Steering pad switch vol+ switch pushed 1.8 V
      F23-7 (SW1) - F1-20 (GND) L - BR Steering pad switch signal Steering pad switch vol-switch pushed 3.0 V
      F23-8 (SW2) - F1-20 (GND) P - BR Steering pad switch signal Steering pad switch not pushed 4 V or higher
      F23-8 (SW2) - F1-20 (GND) P - BR Steering pad switch signal Steering pad switch MODE switch pushed Below 0.5 V
      F23-8 (SW2) - F1-20 (GND) P - BR Steering pad switch signal Steering pad switch on hook switch pushed 0.9 V
      F23-8 (SW2) - F1-20 (GND) P - BR Steering pad switch signal Steering pad switch off hook switch pushed 1.5 V
      F23-8 (SW2) - F1-20 (GND) P - BR Steering pad switch signal Steering pad switch voice recognition switch pushed 3.0 V
      F25-1 (NTSC) - F1-20 (GND) W - BR DVD image signal DVD played Pulse generation (see WAVEFORM 1 )
      F25-2 (GND) - F1-20 (GND) B - BR Ground Always Below 1 V
      F25-3 (SLD) - F1-20 (GND) Shielded - BR Shielded ground Always Below 1 V
      F26-2 (ARI) - F1-20 (GND) W - BR Sound signal (right) External device playing (When stereo jack used) Waveform synchronized with sound is output
      F26-5 (ASGN) - F1-20 (GND) R - BR Ground Always Below 1 V
      F26-4 (AGND) - F1-20 (GND) Shielded - BR Shielded ground Always Below 1 V
      F26-3 (ALI) - F1-20 (GND) B - BR Sound signal (left) External device playing (When stereo jack used) Waveform synchronized with sound is output
      F26-6 (AUXI) - F1-20 (GND) V - BR External device connection detection signal External device connected Below 1 V
      HINT:
      *: w/Rear Seat Entertainment System
      #: There is no wire color information.
      If the result is not as specified, the receiver may have a malfunction.
    5. Using an oscilloscope, check the waveform.

      Waveform 1 (reference)

      WAVEFORM REFERENCE CHART

      Item Content
      Terminal No. (Symbol) F25-1 (NTSC) - Body ground
      Tool Setting 200 mV/DIV., 10 μsec./DIV.
      Condition DVD displayed on multi-display
  2. CHECK STEREO COMPONENT AMPLIFIER
    Fig 2: Identifying Signal Waveform 1
    G05630163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    Fig 3: Identifying Stereo Component Amplifier Connector Terminal
    G05630164Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the F18 and F2 amplifier connectors.
    2. Measure the resistance and voltage according to the value(s) in the table below.
      RESISTANCE AND VOLTAGE REFERENCE CHART

      Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
      F2-2 (GND) - Body ground W-B - Body ground Ground Always Below 1 Ω
      F2-6 (GND2) - Body ground W-B - Body ground Ground Always Below 1 Ω
      F2-1 (+B) - F2-2 (GND) L - W-B Battery Always 11 to 14 V
      F2-3 (+B2) - F2-2 (GND) L - W-B Battery Always 11 to 14 V
      F18-12 (ACC) - F2-2 (GND) GR - W-B Accessory (ON) Engine switch off Below 1 V
      F18-12 (ACC) - F2-2 (GND) GR - W-B Accessory (ON) Engine switch on (ACC) 11 to 14 V

      If the result is not as specified, there may be a malfunction on the wire harness side.

    3. Reconnect the F18 and F2 amplifier connectors.
    4. Measure the voltage and waveform according to the value(s) in the table below.
    TERMINAL DESCRIPTION CHART

    Terminal No. (Symbol) Wiring Color Terminal Description Condition Specified Condition
    F3-3 (CTR+) - F2-2 (GND) W - W-B Sound signal Audio system playing Waveform synchronized with sound is output
    F3-9 (CTR-) - F2-2 (GND) B - W-B Sound signal Audio system playing Waveform synchronized with sound is output
    F4-3 (FL+) - F2-2 (GND) W - W-B Sound signal Audio system playing Waveform synchronized with sound is output
    F4-8 (FL-) - F2-2 (GND) B - W-B Sound signal Audio system playing Waveform synchronized with sound is output
    F4-10 (FR+) - F2-2 (GND) W - W-B Sound signal Audio system playing Waveform synchronized with sound is output
    F4-9 (FR-) - F2-2 (GND) B - W-B Sound signal Audio system playing Waveform synchronized with sound is output
    F18-3 (L+) - F2-2 (GND) R - W-B Sound signal Audio system playing Waveform synchronized with sound is output
    F18-2 (L-) - F2-2 (GND) G - W-B Sound signal Audio system playing Waveform synchronized with sound is output
    F18-5 (R+) - F2-2 (GND) B - W-B Sound signal Audio system playing Waveform synchronized with sound is output
    F18-4 (R-) - F2-2 (GND) W - W-B Sound signal Audio system playing Waveform synchronized with sound is output
    F4-1 (WF1+) - F2-2 (GND) W - W-B Sound signal Audio system playing Waveform synchronized with sound is output
    F4-6 (WF1-) - F2-2 (GND) B - W-B Sound signal Audio system playing Waveform synchronized with sound is output
    F3-4 (WF2+) - F2-2 (GND) R - W-B Sound signal Audio system playing Waveform synchronized with sound is output
    F3-10 (WF2-) - F2-2 (GND) W - W-B Sound signal Audio system playing Waveform synchronized with sound is output
    F18-11 (SPD) - F2-2 (GND) V - W-B Speed signal Engine switch on (IG), drive wheels turned slowly Pulse generation
    F18-1 (MUTE) - F2-2 (GND) B - W-B Mute signal Audio system playing → change mode 3.5 V or higher → Below 1 V
    F18-8 (TX+) - F2-2 (GND) R - W-B AVC-LAN communication signal Engine switch on (ACC) 2 to 3 V
    F18-7 (TX-) - F2-2 (GND) W - W-B AVC-LAN communication signal Engine switch on (ACC) 2 to 3 V
    F18-5 (R+) - F2-2 (GND) B - W-B Sound signal (right) Audio system playing Waveform synchronized with sound is output
    F18-4 (R-) - F2-2 (GND) W - W-B Sound signal (right) Audio system playing Waveform synchronized with sound is output
    F18-3 (L+) - F2-2 (GND) R - W-B Sound signal (left) Audio system playing Waveform synchronized with sound is output
    F18-2 (L-) - F2-2 (GND) G - W-B Sound signal (left) Audio system playing Waveform synchronized with sound is output
    F4-4 (R-L+) - F2-2 (GND) W - W-B Sound signal (left) Audio system playing Waveform synchronized with sound is output
    F4-11 (R-L-) - F2-2 (GND) B - W-B Sound signal (left) Audio system playing Waveform synchronized with sound is output
    F4-5 (R-R+) - F2-2 (GND) W - W-B Sound signal (right) Audio system playing Waveform synchronized with sound is output
    F4-12 (R-R-) - F2-2 (GND) B - W-B Sound signal (right) Audio system playing Waveform synchronized with sound is output
    F3-8 (SL+) - F2-2 (GND) W - W-B Sound signal Audio system playing Waveform synchronized with sound is output
    F3-7 (SL-) - F2-2 (GND) B - W-B Sound signal Audio system playing Waveform synchronized with sound is output
    F4-2 (SR+) - F2-2 (GND) W - W-B Sound signal Audio system playing Waveform synchronized with sound is output
    F3-1 (WFL+) - F2-2 (GND) P - W-B Sound signal Audio system playing Waveform synchronized with sound is output
    F3-5 (WFL-) - F2-2 (GND) V - W-B Sound signal Audio system playing Waveform synchronized with sound is output
    F3-2 (WFR+) - F2-2 (GND) LG - W-B Sound signal Audio system playing Waveform synchronized with sound is output
    F3-6 (WFR-) - F2-2 (GND) L - W-B Sound signal Audio system playing Waveform synchronized with sound is output
    F18-15 (M1+) - F2-2 (GND) W - W-B Voice guidance signal Voice guidance provided Waveform synchronized with sound is output
    F18-14 (M1-) - F2-2 (GND) B - W-B Voice guidance signal Voice guidance provided Waveform synchronized with sound is output
    HINT:
    #: There is no wire color information.
    If the result is not as specified, the amplifier may have a malfunction.
  3. CHECK MULTI-DISPLAY  (See TERMINALS OF ECU )
