Parts Location

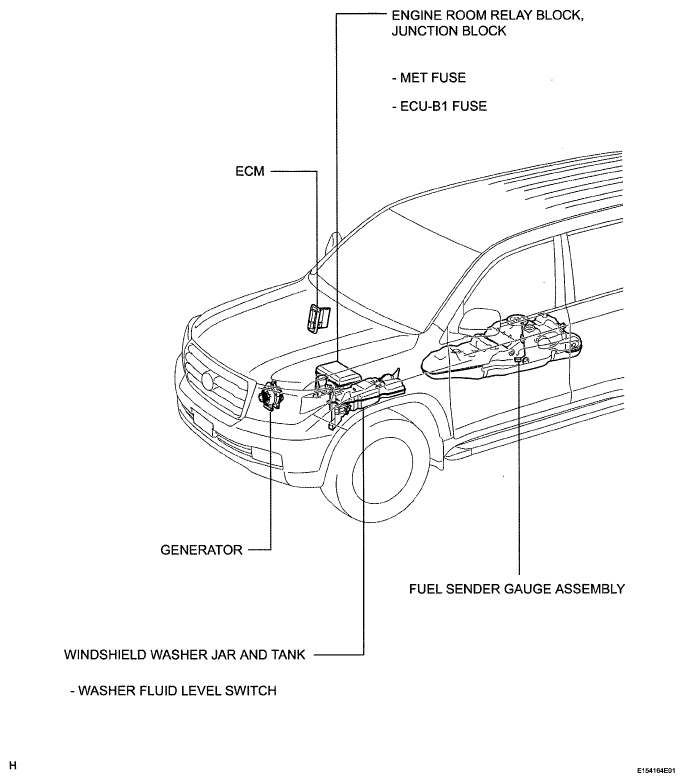

Fig 1: Identifying Meter / Gauge System Parts Location (1 Of 6)
G05635197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

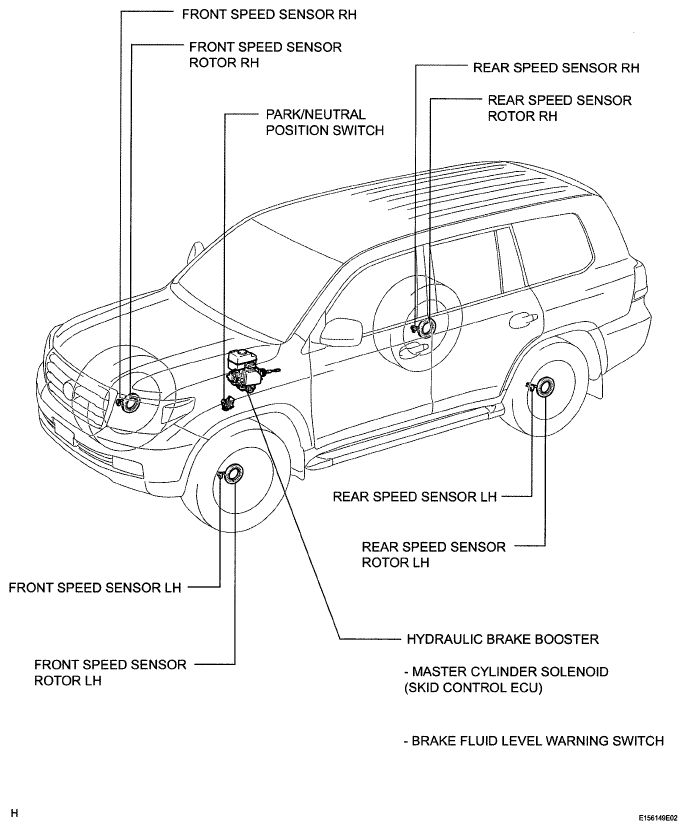

Fig 2: Identifying Meter / Gauge System Parts Location (2 Of 6)
G05635198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

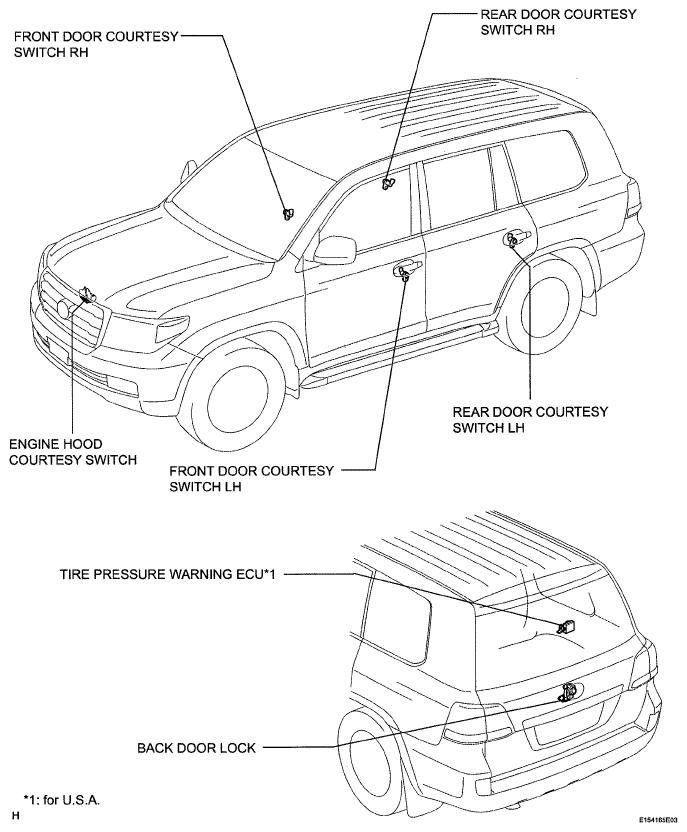

Fig 3: Identifying Meter / Gauge System Parts Location (3 Of 6)
G05635199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

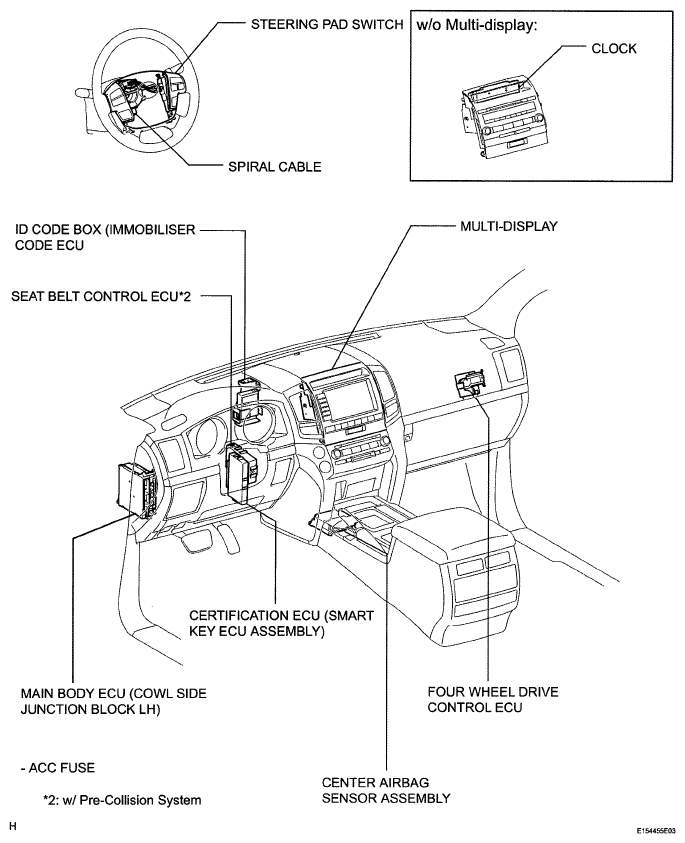

Fig 4: Identifying Meter / Gauge System Parts Location (4 Of 6)
G05635200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

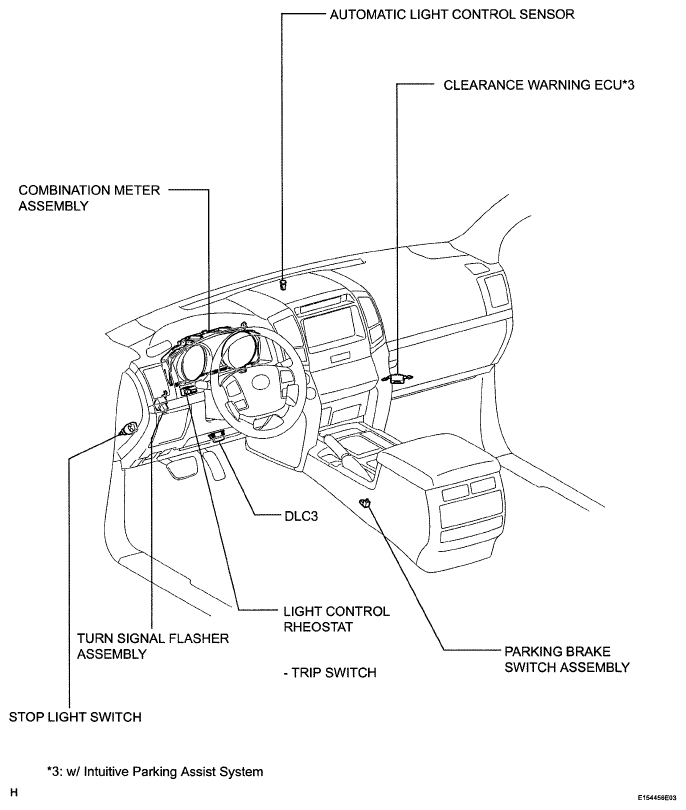

Fig 5: Identifying Meter / Gauge System Parts Location (5 Of 6)
G05635201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

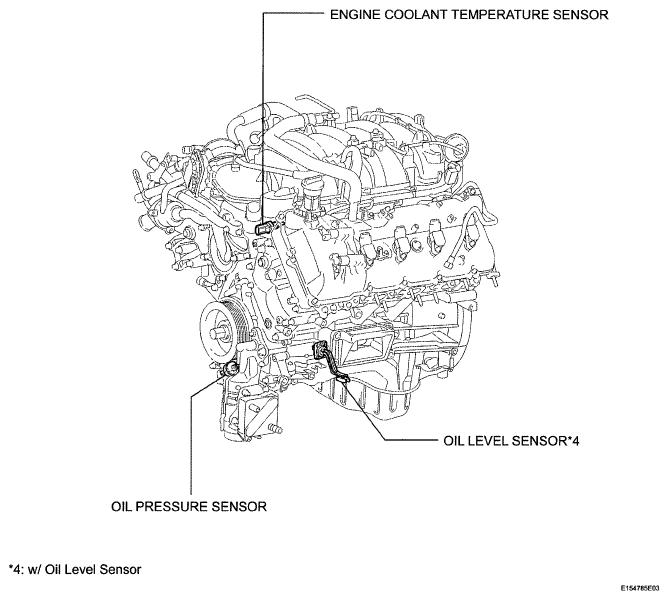

Fig 6: Identifying Meter / Gauge System Parts Location (6 Of 6)
G05635202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
