Rear Shock Absorber: Removal

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. REMOVE REAR WHEEL
2. REMOVE DECK SIDE TRIM COVER  (See REMOVAL )
3. REMOVE DECK SIDE TRIM  (See REMOVAL )
4. SEPARATE REAR FLEXIBLE HOSE (for 2WD)
   1. Remove the bolt and separate the rear flexible hose from the rear shock absorber with coil spring.
      Fig 1: Identifying Rear Flexible Hose Bolt (2WD)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. SEPARATE REAR FLEXIBLE HOSE (for 4WD)
   1. Remove the bolt and separate the rear flexible hose from the rear shock absorber with coil spring.
      Fig 2: Identifying Rear Flexible Hose Bolt (4WD)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. SEPARATE REAR SPEED SENSOR WIRE (for 2WD)
   1. Remove the bolt and separate the rear speed sensor from the rear shock absorber with coil spring.
      Fig 3: Identifying Rear Speed Sensor Wire Bolt (2WD)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. SEPARATE REAR SPEED SENSOR (for 4WD)
   1. Remove the bolt and separate the rear speed sensor from the rear shock absorber with coil spring.
      Fig 4: Identifying Rear Speed Sensor Bolt (4WD)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. SEPARATE REAR STABILIZER LINK ASSEMBLY (for 2WD)
   1. Remove the nut and separate the rear stabilizer link assembly from the rear shock absorber with coil spring.

      HINT:

      If the ball joint turns together with the nut, use a hexagon wrench (5 mm) to hold the stud bolt.

      Fig 5: Identifying Rear Stabilizer Link Assembly Nut (2WD)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. SEPARATE REAR STABILIZER LINK ASSEMBLY (for 4WD)
   1. Remove the nut and separate the rear stabilizer link assembly from the rear shock absorber with coil spring.

      HINT:

      If the ball joint turns together with the nut, use a hexagon wrench (5 mm) to hold the stud bolt.

      Fig 6: Identifying Rear Stabilizer Link Assembly Nut (4WD)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. REMOVE REAR NO. 1 SUSPENSION SUPPORT COVER
    1. Disengage the 4 claws and remove the rear No. 1 suspension support cover.
       Fig 7: Identifying Rear No. 1 Suspension Support Cover Claws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. REMOVE REAR SHOCK ABSORBER WITH COIL SPRING (for 2WD)
    1. Using a jack and wooden block, support the rear axle carrier sub-assembly.
       NOTE: Do not deform the dust cover.

       HINT:

       Support the rear axle carrier sub-assembly until reinstallation of the rear shock absorber with coil spring is complete.

       Fig 8: Supporting Rear Axle Carrier Sub-Assembly Using Jack & Wooden Block (2WD)

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen the rear support to rear shock absorber nut.
       CAUTION: Do not remove the rear support to rear shock absorber nut.
       NOTE: Loosen the nut only when the rear shock absorber with coil spring needs to be disassembled.
       Fig 9: Identifying Rear Support To Rear Shock Absorber Nut

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and 2 nuts, and separate the rear shock absorber with coil spring from the rear axle carrier sub-assembly.
       NOTE: When removing the nuts, keep the bolts from rotating.
       Fig 10: Identifying Rear Shock Absorber With Coil Spring, Bolts & Nuts

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 3 nuts and rear shock absorber with coil spring.
       NOTE: Make sure that the rear speed sensor and rear flexible hose are disconnected from the rear shock absorber with coil spring.
       Fig 11: Identifying Rear Shock Absorber With Coil Spring & Nuts

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. REMOVE REAR SHOCK ABSORBER WITH COIL SPRING (for 4WD)
    1. Using a jack and wooden block, support the rear axle carrier sub-assembly.
       NOTE: Do not deform the dust cover.

       HINT:

       Support the rear axle carrier sub-assembly until reinstallation of the rear shock absorber with coil spring is complete.

       Fig 12: Supporting Rear Axle Carrier Sub-Assembly Using Jack & Wooden Block (4WD)

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Loosen the rear support to rear shock absorber nut.
       CAUTION: Do not remove the rear support to rear shock absorber nut.
       NOTE: Loosen the nut only when the rear shock absorber with coil spring needs to be disassembled.
       Fig 13: Identifying Rear Support To Rear Shock Absorber Nut

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and 2 nuts, and separate the rear shock absorber with coil spring from the rear axle carrier sub-assembly.
       NOTE: When removing the nuts, keep the bolts from rotating.
       Fig 14: Identifying Rear Shock Absorber With Coil Spring, Bolts & Nuts

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 3 nuts and rear shock absorber with coil spring.
       NOTE: Make sure that the rear speed sensor and rear flexible hose are disconnected from the rear shock absorber with coil spring.
       Fig 15: Identifying Rear Shock Absorber With Coil Spring & Nuts

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. SECURE REAR SHOCK ABSORBER WITH COIL SPRING (for 2WD)
    1. Install the bolt and nut to the rear shock absorber with coil spring as shown below and secure the rear shock absorber with coil spring in a vise.

       Length (A): 28 mm (1.1 in.)

       Fig 16: Securing Rear Shock Absorber With Coil Spring In Vise (2WD)

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
14. SECURE REAR SHOCK ABSORBER WITH COIL SPRING (for 4WD)
    1. Install the bolt and nut to the rear shock absorber with coil spring as shown below and secure the rear shock absorber with coil spring in a vise.

       Length (A): 28 mm (1.1 in.)

       Fig 17: Securing Rear Shock Absorber With Coil Spring In Vise (4WD)

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
15. REMOVE REAR SUPPORT TO REAR SHOCK ABSORBER NUT
    1. Using SST, compress the rear coil spring.

       SST 09727-30021 (09727-00010,09727-00021, 09727-00031)

       NOTE: Do not use an impact wrench. It will damage SST.

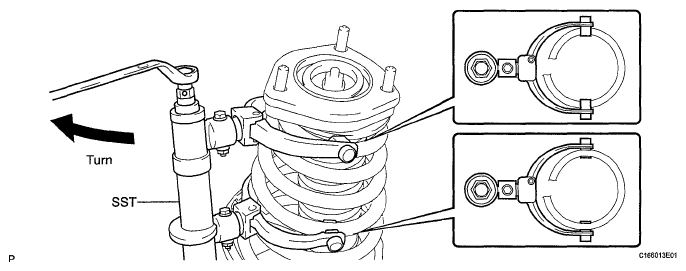

       Fig 18: Compressing Rear Coil Spring Using SST

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check that the front coil spring is fully compressed.
    3. Hold the rear suspension support assembly and remove the rear support to rear shock absorber nut from the rear shock absorber assembly.
       Fig 19: Identifying Rear Support To Rear Shock Absorber Nut

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
16. REMOVE REAR SUPPORT TO REAR SHOCK ABSORBER COLLAR
    1. Remove the rear support to rear shock absorber collar from the rear shock absorber assembly.
       Fig 20: Identifying Rear Support To Rear Shock Absorber Collar

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
17. REMOVE REAR SUSPENSION SUPPORT ASSEMBLY
    1. Remove the rear suspension support assembly from the rear shock absorber assembly.
       Fig 21: Identifying Rear Suspension Support Assembly & Rear Shock Absorber Assembly

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
18. REMOVE REAR COIL SPRING
    1. Remove the rear coil spring together with SST from the rear shock absorber assembly.
       Fig 22: Identifying Rear Coil Spring With SST

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
19. REMOVE REAR NO. 1 SPRING BUMPER
    1. Remove the rear No. 1 spring bumper from the rear shock absorber assembly.
       Fig 23: Identifying Rear No. 1 Spring Bumper

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
20. REMOVE REAR LOWER COIL SPRING INSULATOR
    1. Remove the rear lower coil spring insulator from the rear shock absorber assembly.
       Fig 24: Identifying Rear Lower Coil Spring Insulator
