REAR STABILIZER BAR (for 2WD): Installation

INSTALL REAR STABILIZER BUSHING (for LH Side)
1. Install the rear stabilizer bushing.

  Fig 1: Identifying Rear Stabilizer Bushing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR STABILIZER BUSHING (for RH Side)
HINT:

Perform the same procedure as the LH side.
INSTALL REAR NO. 1 STABILIZER BAR BRACKET (for LH Side)
1. Install the rear stabilizer bar bracket.

  Fig 2: Identifying Rear No. 1 Stabilizer Bar Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR NO. 1 STABILIZER BAR BRACKET (for RH Side)
HINT:

Perform the same procedure as the LH side.
INSTALL REAR STABILIZER BAR
1. Install the rear stabilizer bar with the 4 bolts.
  Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

  Fig 3: Identifying Rear Stabilizer Bar & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR STABILIZER LINK ASSEMBLY LH
1. Install the rear stabilizer link assembly LH to the rear shock absorber with coil spring LH with the nut.
  Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

  HINT:

  If the ball joint turns together with the nut, use a hexagon wrench (5 mm) to hold the stud bolt.

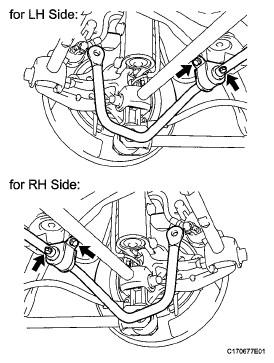

  Fig 4: Identifying Rear Stabilizer Link Assembly LH With Coil Spring & Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rear stabilizer link assembly LH to the rear stabilizer bar with the nut.
  Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

  HINT:

  If the ball joint turns together with the nut, use a hexagon wrench (5 mm) to hold the stud bolt.

  Fig 5: Identifying Rear Stabilizer Link Assembly LH Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR STABILIZER LINK ASSEMBLY RH
HINT:

Perform the same procedure as the LH side.
INSTALL REAR WHEELS
Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
