Home >> Toyota >> 2008 >> Highlander Base, FWD >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Suspension (Except Hybrid) >> Rear Strut Rod >> Components

Rear Strut Rod: Components

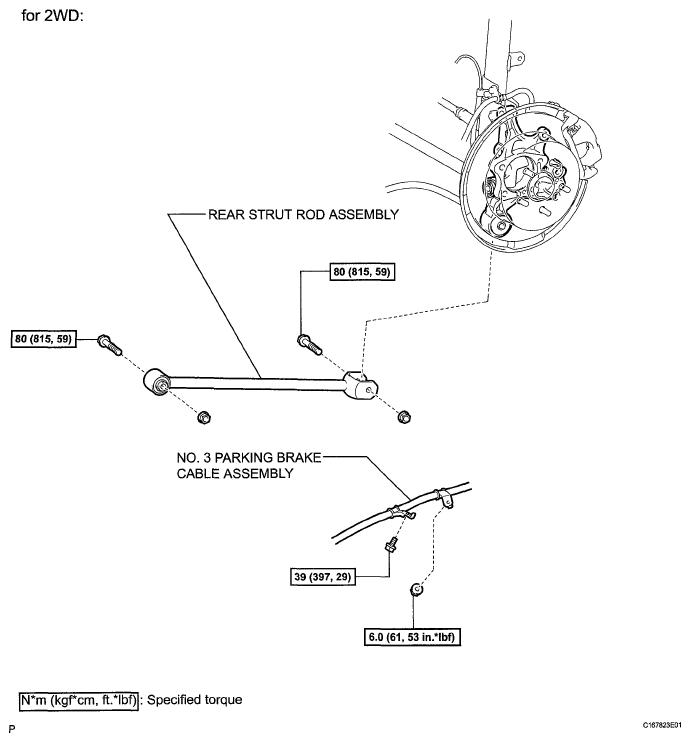

Fig 1: Identifying Rear Strut Rod Replacement Components With Torque Specifications (1 Of 2)
G05417513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

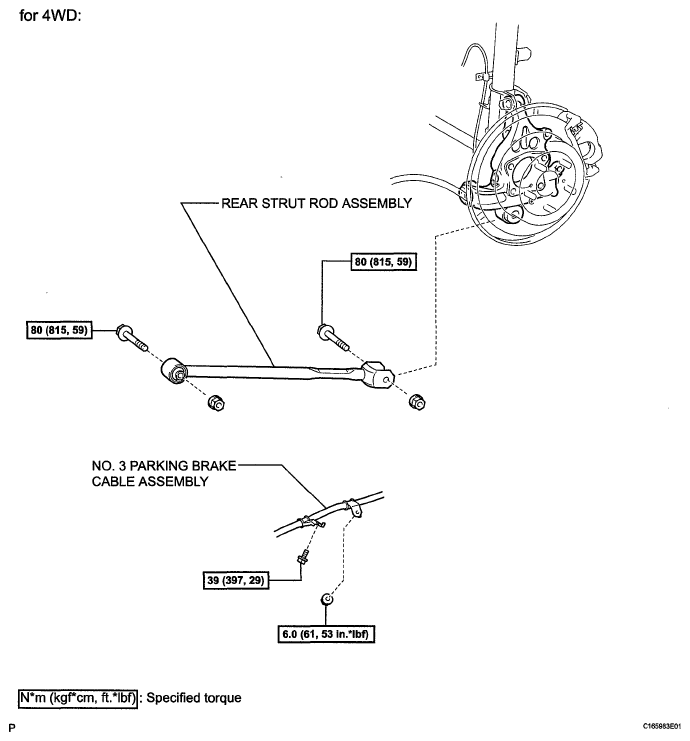

Fig 2: Identifying Rear Strut Rod Replacement Components With Torque Specifications (2 Of 2)
G05417514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
