Rear Shock Absorber: Components

Fig 1: Identifying Rear Shock Absorber Replacement Components With Torque Specifications (1 Of 3)
G05417345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

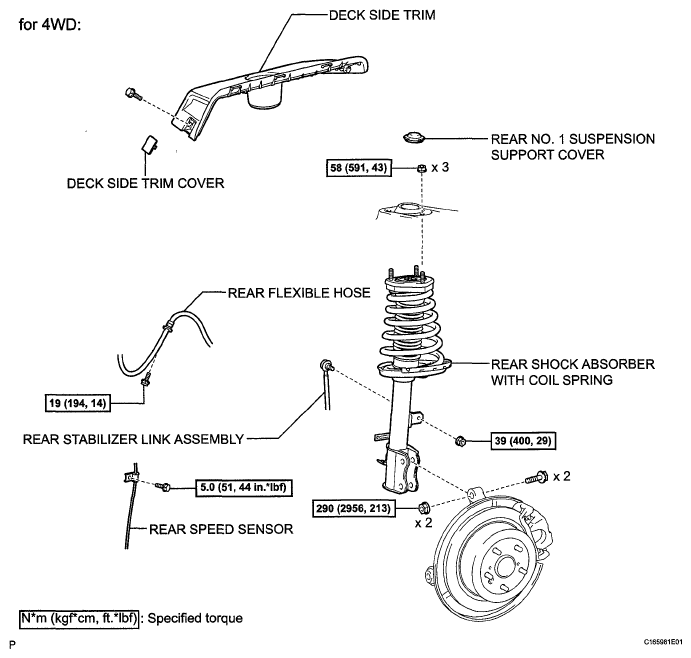

Fig 2: Identifying Rear Shock Absorber Replacement Components With Torque Specifications (2 Of 3)
G05417346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Rear Shock Absorber Replacement Components With Torque Specifications (3 Of 3)
G05417347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
