REAR SUSPENSION MEMBER (for 2WD): Components

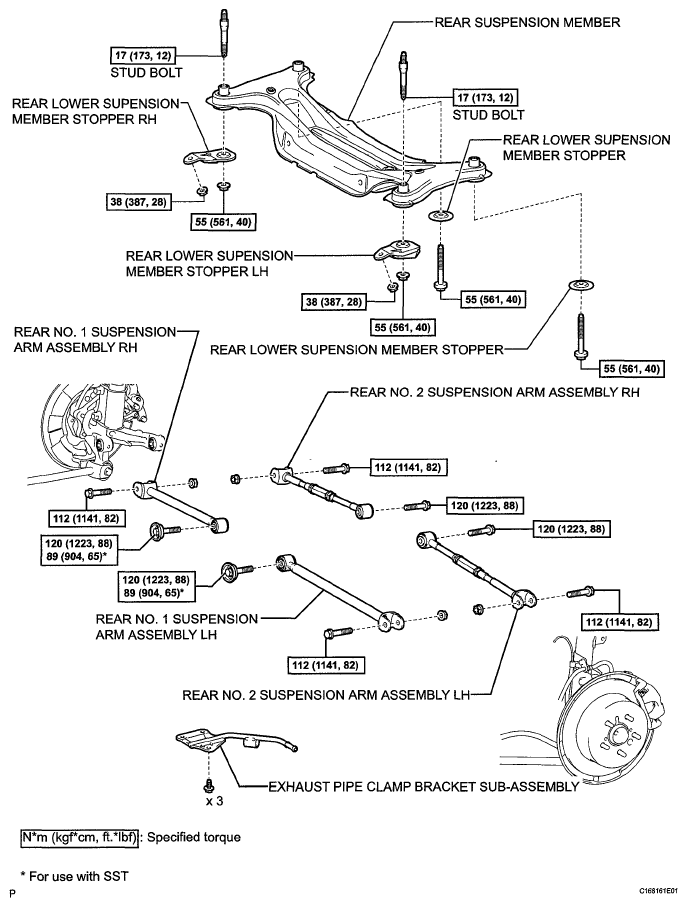

Fig 1: Identifying Rear Suspension Member Replacement Components - 2WD (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

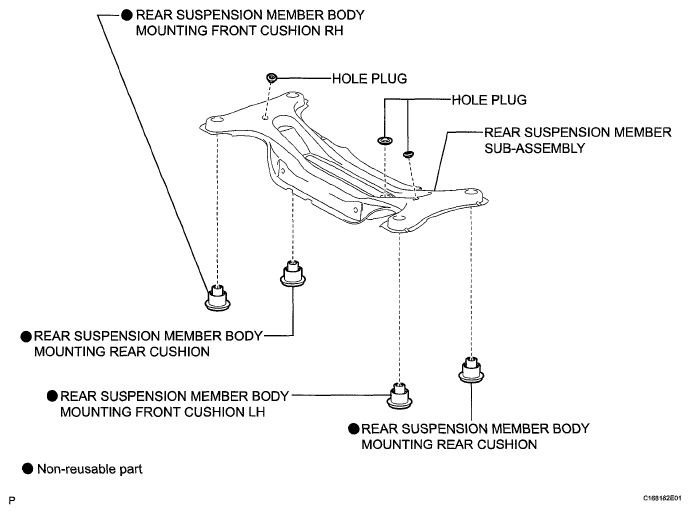

Fig 2: Identifying Rear Suspension Member Replacement Components - 2WD (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Rear Suspension Member Replacement Components - 2WD (3 Of 5) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Rear Suspension Member Replacement Components - 2WD (4 Of 5) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Rear Suspension Member Replacement Components - 2WD (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
