REAR LOWER ARM (for 2WD): Components

Fig 1: Identifying Rear Lower Arm (2WD) Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Rear Lower Arm (2WD) Replacement Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

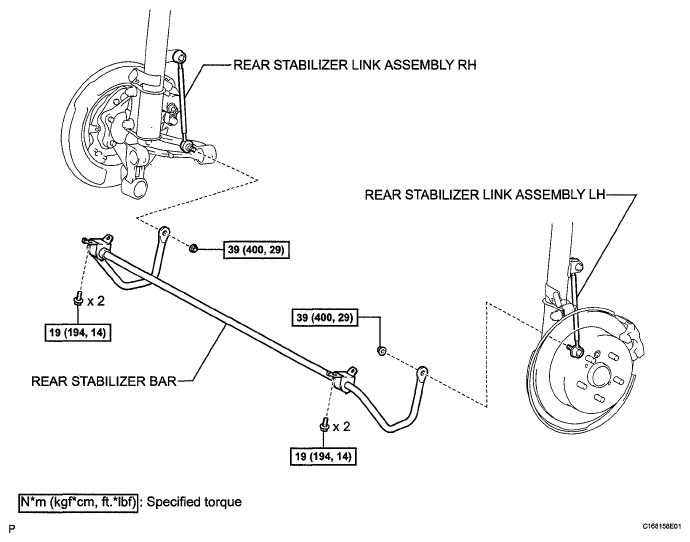

Fig 3: Identifying Rear Lower Arm (2WD) Replacement Components (3 Of 4) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

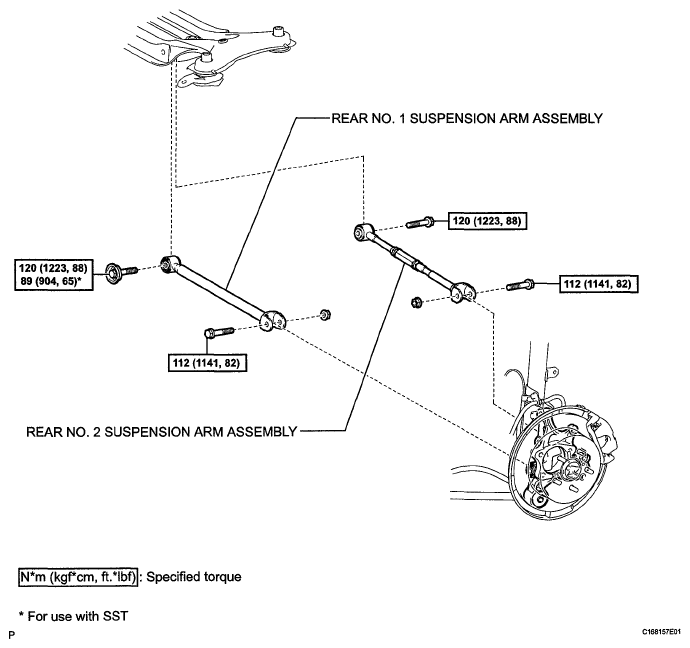

Fig 4: Identifying Rear Lower Arm (2WD) Replacement Components (4 Of 4) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
