Front Suspension Member: Components

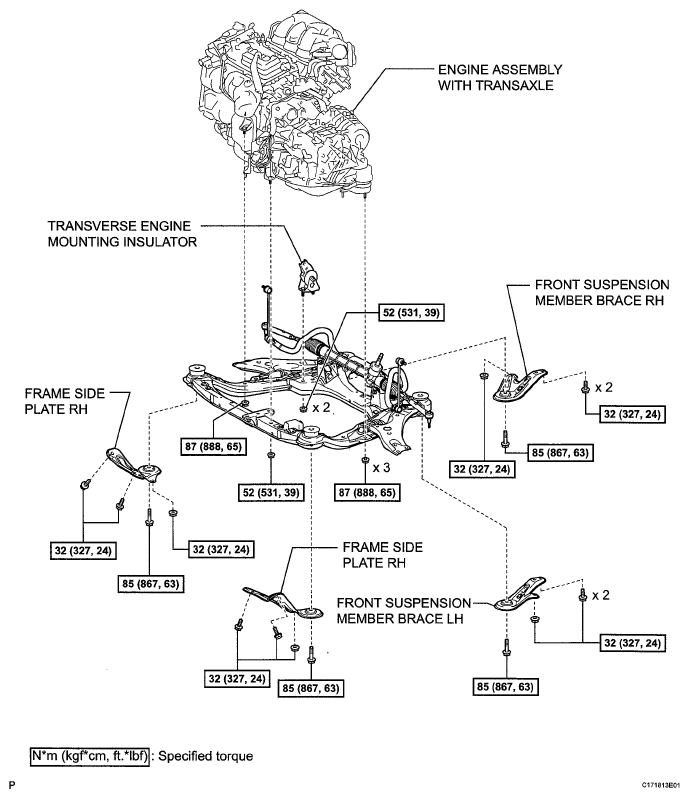

Fig 1: Identifying Front Suspension Member Replacement Components (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

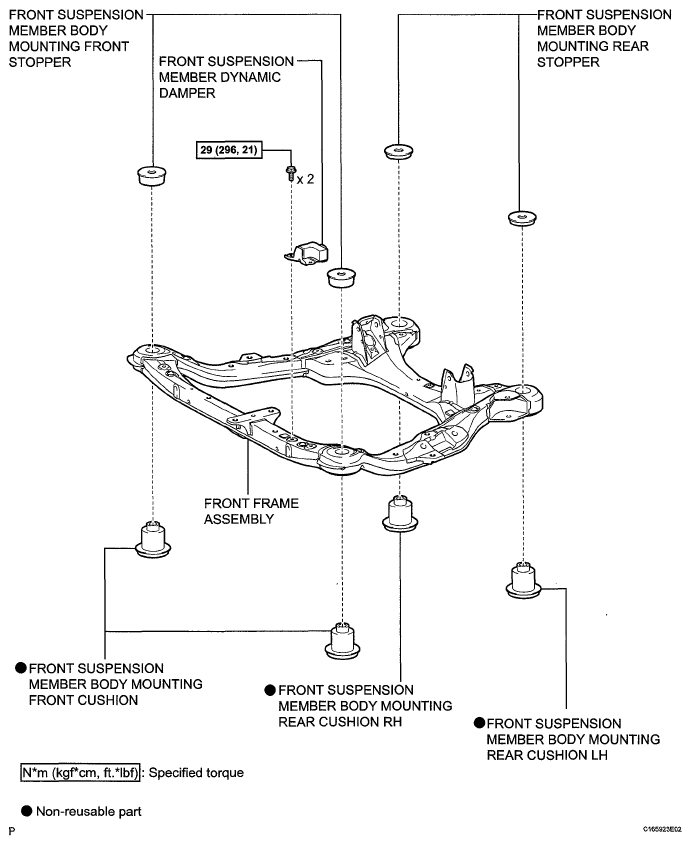

Fig 2: Identifying Front Suspension Member Replacement Components (2 Of 4) With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Front Suspension Member Replacement Components (3 Of 4) With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Front Suspension Member Replacement Components (4 Of 4) With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
