Front Shock Absorber: Components

Fig 1: Identifying Front Shock Absorber Replacement Components (1 Of 3) With Torque Specifications
G05417264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

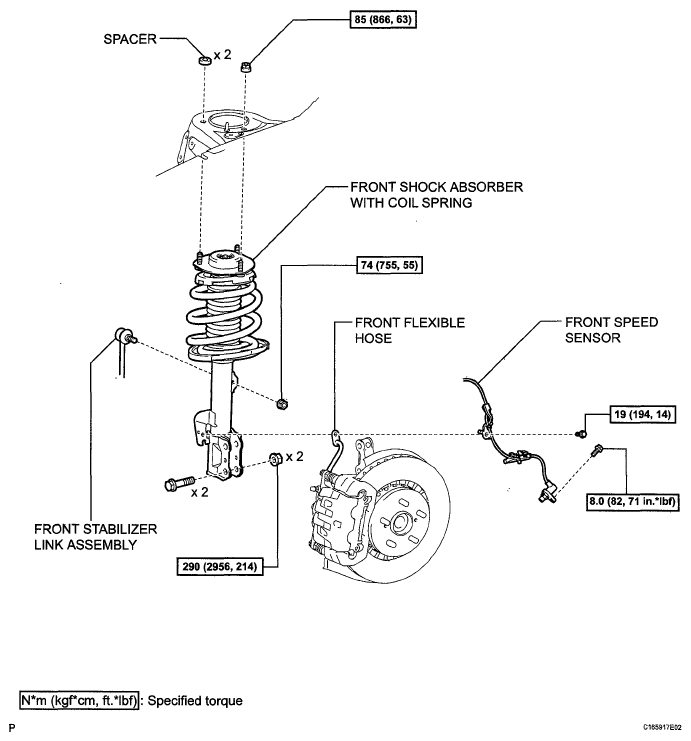

Fig 2: Identifying Front Shock Absorber Replacement Components (2 Of 3) With Torque Specifications
G05417265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Front Shock Absorber Replacement Components (3 Of 3) With Torque Specifications
G05417266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
