OEM Overall Electrical Wiring Diagram (Except Hybrid)
>>
Overall Electrical Wiring Diagram
>>
Automatic Glare-Resistant EC Mirror, Clock (w/o Multi Display), Sliding Roof
Automatic Glare-Resistant EC Mirror, Clock (w/o Multi Display), Sliding Roof

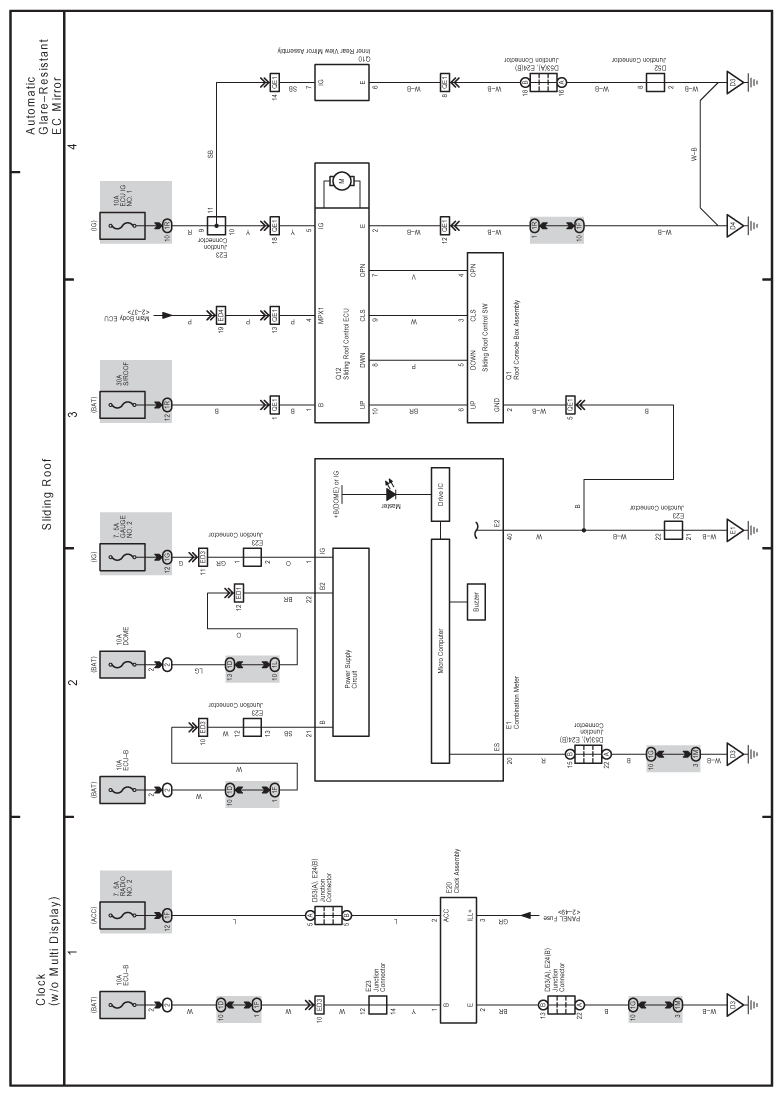

Fig 1: Clock (w/o Multi Display), Sliding Roof And Automatic Glare-Resistant EC Mirror - Electrical Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
