On-Vehicle Inspection

INSPECT REAR DOOR PANEL SUB-ASSEMBLY

Check that the clearance measurements of areas A through K are within each standard range.

Standard clearance

MEASUREMENT TABLE

Area	Measurement
A	3.3 to 6.3 mm (0.130 to 0.248 in.)
B	-1.5 to 1.5 mm (-0.059 to 0.059 in.)
C	3.3 to 6.3 mm (0.130 to 0.248 in.)
D	-1.5 to 1.5 mm (-0.059 to 0.059 in.)
E	3.3 to 6.3 mm (0.130 to 0.248 in.)
F	4.2 to 7.2 mm (0.165 to 0.284 in.)
G	3.0 to 6.0 mm (0.118 to 0.236 in.)
H	4.2 to 7.2 mm (0.165 to 0.284 in.)
I	3.1 to 6.1 mm (0.122 to 0.240 in.)
J	4.0 to 8.0 mm (0.158 to 0.315 in.)
K	6.3 to 10.3 mm (0.248 to 0.405 in.)

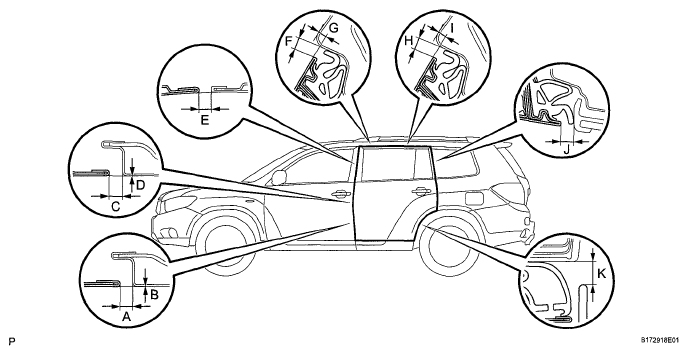

Fig 1: Identifying Rear Door Panel Sub-Assembly Clearance

G05422191

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
